ATS-55210R-C1-R0

Active

Advanced Thermal Solutions Inc.

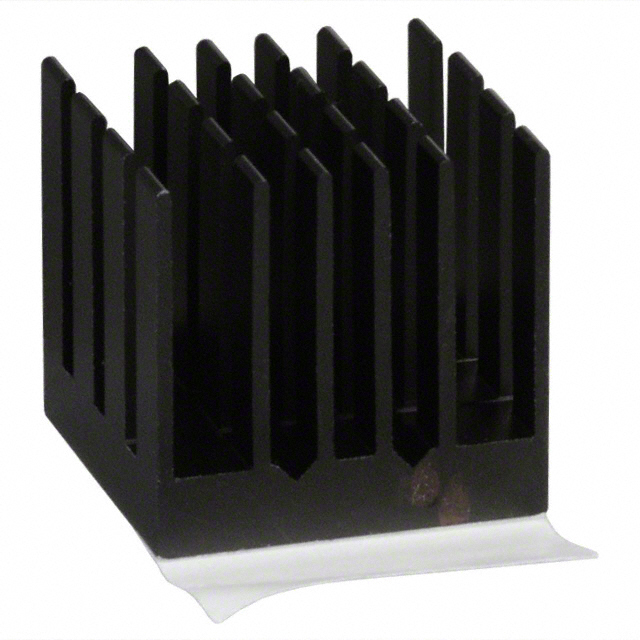

HEAT SINKS BGA HEAT SINK, X-CUT, SQUARE FIN, 2 SIDE THERMAL TAPE, BLACK, 21X21X19.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-55210R-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS BGA HEAT SINK, X-CUT, SQUARE FIN, 2 SIDE THERMAL TAPE, BLACK, 21X21X19.5MM

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-55210R-C1-R0

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	0.768 in
Fin Height	19.5 mm
Length	0.827 in
Length	21 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 8.4 °C/W
Type	Top Mount
Width [y]	21 mm
Width [y]	0.827 in

BGA Cross-Cut Series

Heat Sinks Heat Sink, X-CUT, 2 Side Thermal Tape, Black Anodize, T412, 19x19x19.5mm

...

Part	Fin Height [z]	Fin Height [z]	Shape	Attachment Method	Material Finish	Material	Package Cooled	Length [x]	Length [x]	Type	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Length	Length	Width [y]	Width [y]	Fin Height	Fin Height	Width
Advanced Thermal Solutions Inc. ATS-55170W-C1-R0	24.5 mm	0.965 in	Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	Aluminum	BGA	0.669 in	17 mm	Top Mount	0.669 in	17 mm	8.6 °C/W
Advanced Thermal Solutions Inc. ATS-55325W-C1-R0	24.5 mm	0.965 in	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	Aluminum	BGA			Top Mount			3.5 °C/W	32.51 mm	1.28 in	1.28 in	32.51 mm
Advanced Thermal Solutions Inc. ATS-55230W-C1-R0	24.5 mm	0.965 in	Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	Aluminum	BGA	0.9 in	23 mm	Top Mount			6 °C/W 200 LFM			0.906 in	23.01 mm
Advanced Thermal Solutions Inc. ATS-55400D-C1-R0			Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	Aluminum	BGA			Top Mount	1.575 in	40 mm	10 °C/W 200 LFM					0.374 in	9.5 mm
Advanced Thermal Solutions Inc. ATS-55325D-C0-R0			Pin Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA			Top Mount			12.5 °C/W	32.51 mm	1.28 in	1.28 in	32.51 mm	0.374 in	9.5 mm
Advanced Thermal Solutions Inc. ATS-1040-C2-R0			Rectangular Angled Fins	Push Pin	Green Anodized	Aluminum	BGA			Top Mount	1.5 in		1.6 °C/W					0.984 in	25 mm	38.1 mm
Advanced Thermal Solutions Inc. ATS-55375K-C0-R0	14.5 mm	0.571 in	Pin Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA			Top Mount			5.6 °C/W 200 LFM	37.5 mm	1.476 in	1.476 in	37.5 mm
Advanced Thermal Solutions Inc. ATS-55250D-C0-R0			Pin Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA			Top Mount	0.984 in		16.5 °C/W 200 LFM	25 mm	0.984 in			0.374 in	9.5 mm	25 mm
Advanced Thermal Solutions Inc. ATS-55310D-C0-R0			Pin Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA			Top Mount				30.99 mm	1.22 in			0.374 in	9.5 mm
Advanced Thermal Solutions Inc. ATS-55230D-C0-R0			Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA	0.9 in	23 mm	Top Mount			18 °C/W 200 LFM			0.906 in	23.01 mm	0.374 in	9.5 mm
