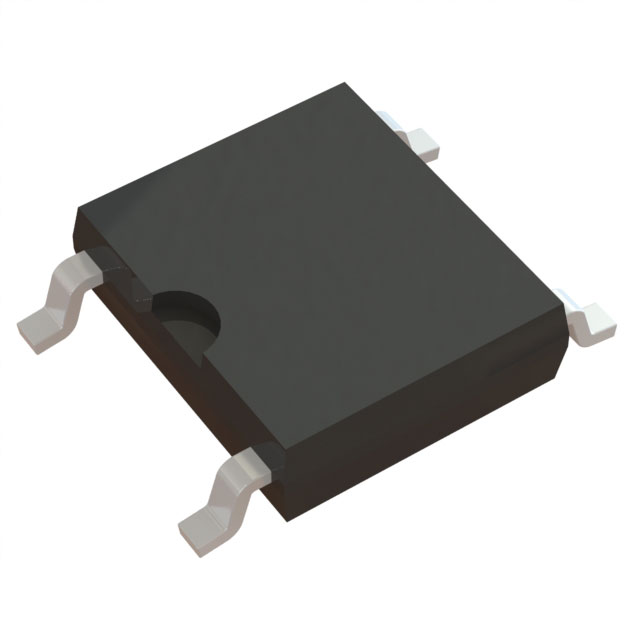

RABF24-13

Obsolete

Diodes Inc

BRIDGE RECTIFIER ABF/SOPA-4(TYPE

Search across all available documentation for this part.

Obsolete

Diodes Inc

BRIDGE RECTIFIER ABF/SOPA-4(TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	RABF24-13

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOPA
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V
Voltage - Peak Reverse (Max) [Max]	400 V

Part	Diode Type	Voltage - Peak Reverse (Max) [Max]	Package / Case	Supplier Device Package	Technology	Current - Reverse Leakage @ Vr	Mounting Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Min]	Operating Temperature [Max]
Diodes Inc RABF24-13	Single Phase	400 V	4-SMD Gull Wing	4-SOPA	Standard	5 µA	Surface Mount	2 A	1.3 V	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 400 V Surface Mount 4-SOPA
