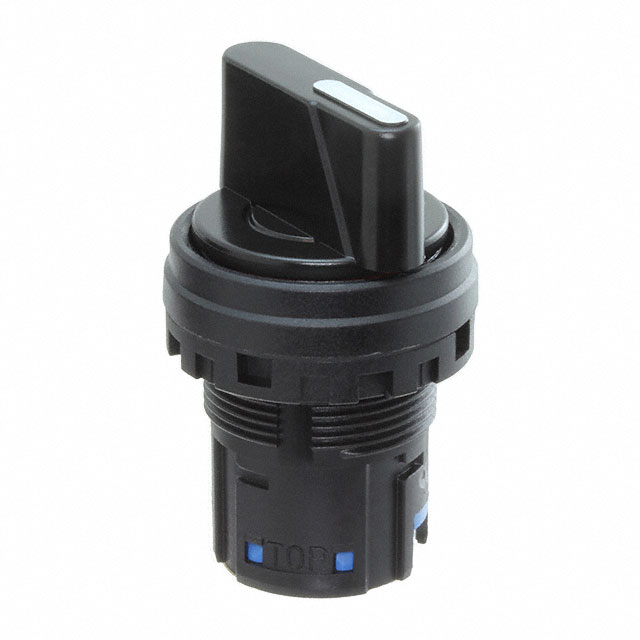

HW1S-2T
ActiveIDEC Corporation
SWITCH ACTUATOR, IDEC HW SERIES OILTIGHT SWITCHES AND PILOT DEVICES
Deep-Dive with AI
Search across all available documentation for this part.
HW1S-2T
ActiveIDEC Corporation
SWITCH ACTUATOR, IDEC HW SERIES OILTIGHT SWITCHES AND PILOT DEVICES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HW1S-2T | HW1S Series |
|---|---|---|
| Actuator Type | Selector | Selector |
| Approval Agency | - | TUV, CSA, CCC, CE, UL |
| Circuit | - | DPST-NO/NC, 4PST-NC |
| Current Rating (Amps) | - | 10 A |
| Depth Behind Flange | - | 69.4 mm |
| Depth Behind Flange | - | 89.4 mm |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | - | 500000 Cycles |
| Operating Temperature | - | -25 °C |
| Operating Temperature | - | 60 °C |
| Panel Cutout Dimensions | 22.3 mm | 22.3 mm |
| Panel Cutout Dimensions | - | 22.3 mm |
| Requires | Contact Block(s) | Contact Block(s) |
| Switch Function | - | Mom-On-Mom, Mom-Off-Mom |
| Termination Style | - | Screw Terminal |
| Type | Maintained | Maintained, Standard |
| Voltage Rating - AC | - | 110 V |
| Voltage Rating - DC | - | 24 V |
HW1S Series
Control Switches HW 2POS MNTD SEL SW
| Part | Panel Cutout Dimensions | Type | Actuator Type | Illumination | Requires | Switch Function | Voltage Rating - AC | Mechanical Life | Depth Behind Flange | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Circuit | Current Rating (Amps) | Termination Style | Approval Agency | Panel Cutout Dimensions [diameter] | Depth Behind Flange [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation HW1S-3 | 22.3 mm | Maintained | Selector | Non-Illuminated | Contact Block(s) | ||||||||||||||
IDEC Corporation HW1S-2T | 22.3 mm | Maintained | Selector | Non-Illuminated | Contact Block(s) | ||||||||||||||
IDEC Corporation HW1S-33TF11 | Standard | Non-Illuminated | Mom-Off-Mom, Mom-On-Mom | 110 V | 500000 Cycles | 69.4 mm | IP65 - Dust Tight, Water Resistant | -25 °C | 60 °C | 24 V | DPST-NO/NC | 10 A | Screw Terminal | CCC, CE, CSA, TUV, UL | 22.3 mm | ||||
IDEC Corporation HW1S-3ST | 22.3 mm | Maintained | Selector | Non-Illuminated | Contact Block(s) | ||||||||||||||
IDEC Corporation HW1S-33TF04 | Standard | Non-Illuminated | Mom-On-Mom | 110 V | 500000 Cycles | IP65 - Dust Tight, Water Resistant | -25 °C | 60 °C | 24 V | 4PST-NC | 10 A | Screw Terminal | CCC, CE, CSA, TUV, UL | 22.3 mm | 89.4 mm |
