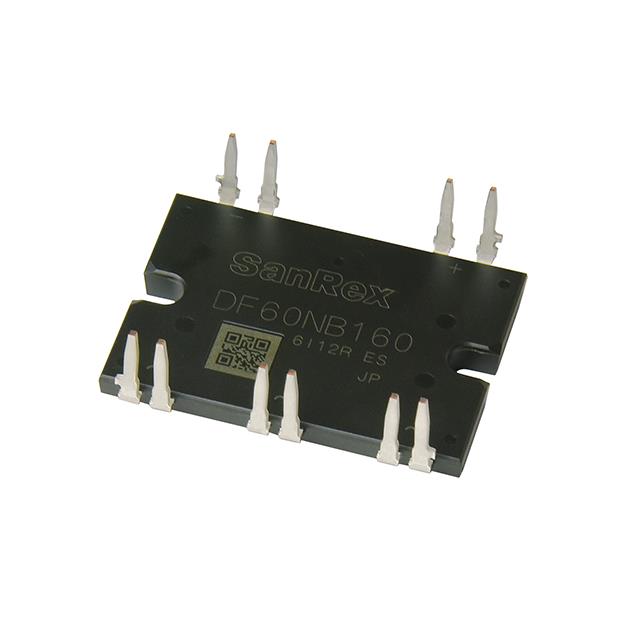

DF60NB160

Active

SanRex Corporation

DIODE MODULE 1600V 60A

Search across all available documentation for this part.

Active

SanRex Corporation

DIODE MODULE 1600V 60A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DF60NB160	DF60 Series

Current - Average Rectified (Io)	60 A	60 A
Current - Reverse Leakage @ Vr	8 mA	8 mA
Diode Type	Three Phase	Three Phase
Mounting Type	Through Hole	Through Hole, Chassis Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	5-PowerDIP Module	5-PowerDIP Module, Module
Supplier Device Package	5-DIP	5-DIP
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V	1.3 V
Voltage - Peak Reverse (Max)	1.6 kV	1.6 kV
Voltage - Peak Reverse (Max)	-	800 V

DIODE MODULE 1600V 60A

Part	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max)	Technology	Package / Case	Mounting Type	Diode Type	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Peak Reverse (Max) [Max]
SanRex Corporation DF60NB160	1.3 V	5-DIP	8 mA	1.6 kV	Standard	5-PowerDIP Module	Through Hole	Three Phase	60 A	150 °C	-40 °C
SanRex Corporation DF60LB80	1.3 V		8 mA		Standard	Module	Chassis Mount	Three Phase	60 A	150 °C	-40 °C	800 V
SanRex Corporation DF60LB160	1.3 V		8 mA	1.6 kV	Standard	Module	Chassis Mount	Three Phase	60 A	150 °C	-40 °C
SanRex Corporation DF60LA80	1.3 V		8 mA		Standard	Module	Chassis Mount	Three Phase	60 A	150 °C	-40 °C	800 V
SanRex Corporation DF60LA160	1.3 V		8 mA	1.6 kV	Standard	Module	Chassis Mount	Three Phase	60 A	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 1.6 kV Through Hole 5-DIP
