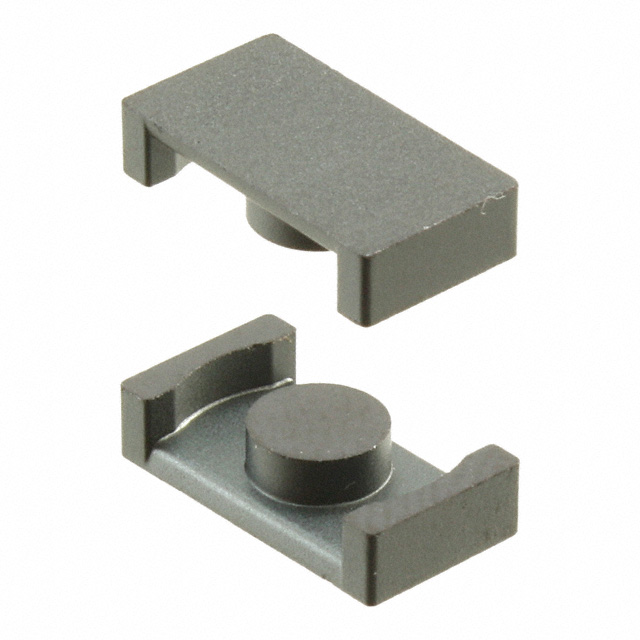

Specification	B65525J0000Y038

Core Factor (ΣI/A) mm⁻¹	1.1 mm⁻¹
Core Type	ER
Effective Area (Ae)	12.4 mm²
Effective Length (le)	14.1 mm
Effective Magnetic Volume (Ve)	174 mm³
Effective Permeability (µe)	5600
Finish	Uncoated
Gap	Ungapped
Height	0.098 in
Inductance Factor (Al)	6.4 µH
Initial Permeability (µi)	10000
Length	0.433 in
Material	T38
Package Length	11 mm
Package Name	ER
Package Width	5 mm
Tolerance (Negative)	30 %
Tolerance (Positive)	40 %
Width	0.236 in
