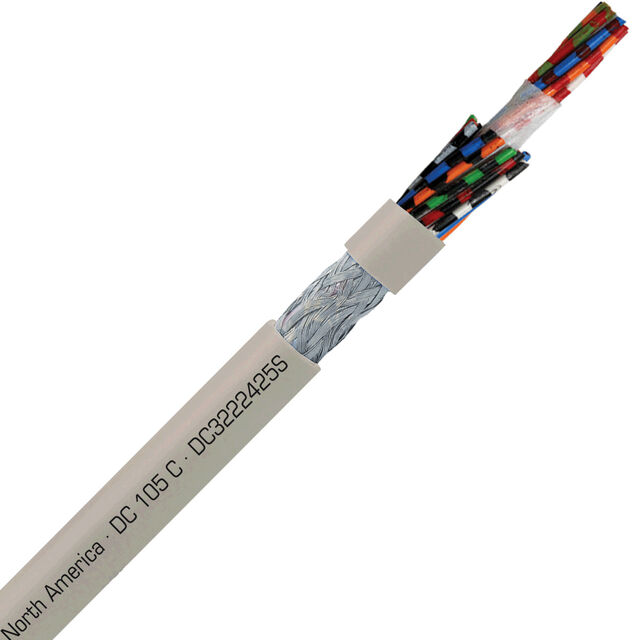

DC3222425S

Active

SAB North America

CABLE 25COND 24AWG GRY SHD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 25COND 24AWG GRY SHD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3222425S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.45 mm
Jacket (Insulation) Diameter [diameter]	0.372 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	25
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG

CABLE 25COND 24AWG GRY SHD 1=1FT

Part	Shield Material	Jacket Color	Voltage	Wire Gauge	Cable Type	Conductor Insulation	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Length
SAB North America DC3222425S	Aluminum, Copper, Tinned	Gray	300 V	24 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Braid, Foil	9.45 mm	0.372 in	-25 °C	105 ░C	Drain Wire	Copper, Tinned	25	Poly-Vinyl Chloride (PVC)	32 AWG	7	Enter Number of Feet in Order Quantity

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Conductor Multi-Conductor Cable Gray 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
