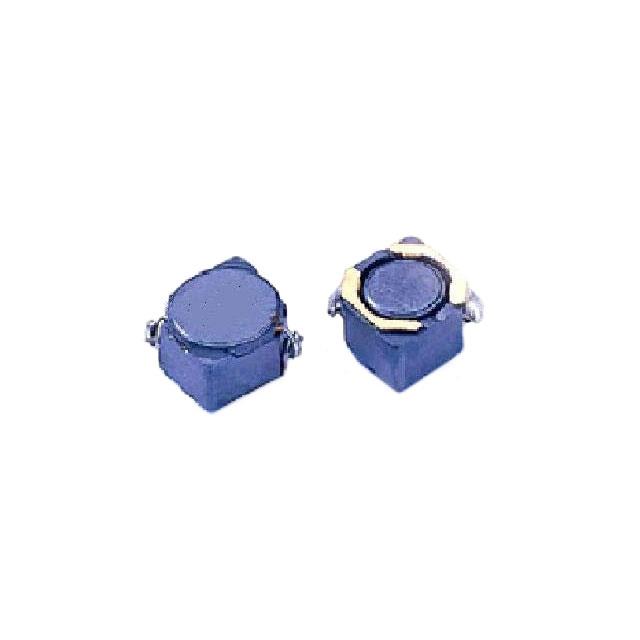

SCRH4D28-5R6
ActiveSignal Transformer
FIXED IND 5.6UH 2.08A 100MOHM SM
SCRH4D28-5R6
ActiveSignal Transformer
FIXED IND 5.6UH 2.08A 100MOHM SM
Description
General part information
SCRH4D28-5R6
5.6 µH Shielded Inductor 2.08 A 100mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRH4D28-5R6 |
|---|---|
| Current - Saturation (Isat) | 1.17 A |
| Current Rating | 2.08 A |
| DC Resistance (DCR) (Max) | 100 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 5.6 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.205 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 30 % |
