1247001-2
ActiveTE Connectivity AMP Connectors

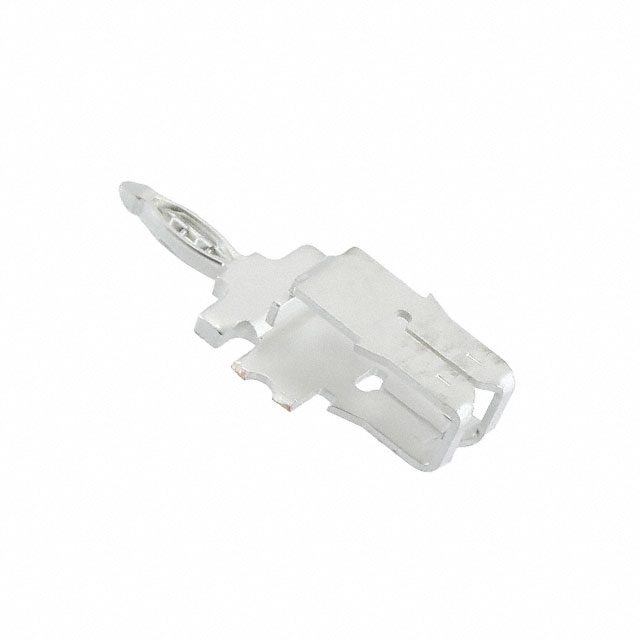

CONN MAG TERM 26-30AWG PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

1247001-2
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 26-30AWG PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
Specification | 1247001-2 |
---|---|
Size | 2 Liter |
Style | 300 |
Terminal Type | Box IDC |
Termination | Press-Fit |
Wire Gauge [Max] | 30 AWG |
Wire Gauge [Min] | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
10 | $ 0.46 | |||
25 | $ 0.46 | |||
50 | $ 0.45 | |||
100 | $ 0.38 | |||
250 | $ 0.35 | |||
500 | $ 0.33 | |||
1000 | $ 0.29 | |||
2500 | $ 0.28 | |||
Tape & Reel (TR) | 10000 | $ 0.24 | ||
30000 | $ 0.23 |
1247001 Series
CONN MAG TERM 26-30AWG PRESS-FIT
Part | Termination | Size | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Style |
---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1247001-2 | Press-Fit | 2 Liter | 26 AWG | 30 AWG | Box IDC | 300 |
Description
General part information
1247001 Series
Terminal Magnetic Connector 300 26-30 AWG Press-Fit
Documents
Technical documentation and resources
