F3600T080
ActiveCurtis Industries

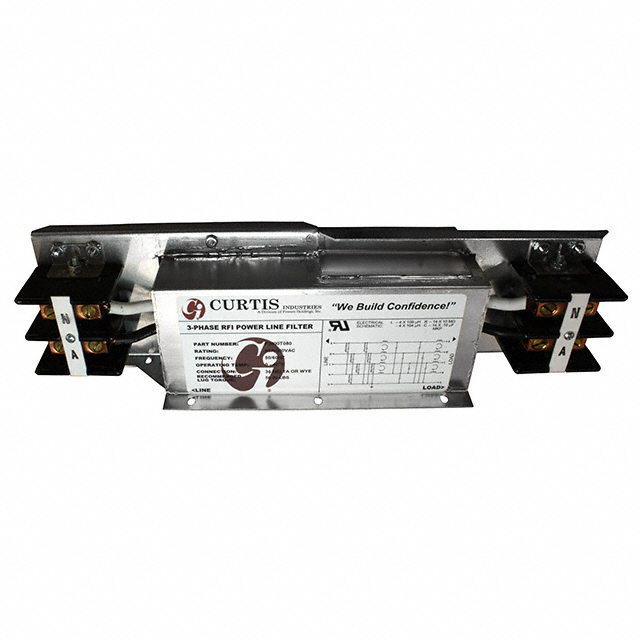

LINE FILTER 600VAC 80A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F3600T080
ActiveCurtis Industries
LINE FILTER 600VAC 80A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | F3600T080 | F3600T Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Configuration | Two Stage | Two Stage |
| Current | 80 A | 25 - 180 A |
| Filter Type | Three Phase (Wye) | Three Phase (Wye) |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Mounting Type | Chassis Mount | Chassis Mount |
| Termination Style | Terminal Block | Terminal Block |
F3600T Series
LINE FILTER 600VAC 25A CHASSIS
| Part | Applications | Termination Style | Frequency - Operating [Max] | Frequency - Operating [Min] | Mounting Type | Filter Type | Current | Configuration |
|---|---|---|---|---|---|---|---|---|
Curtis Industries F3600T025 | General Purpose | Terminal Block | 60 Hz | 50 Hz | Chassis Mount | Three Phase (Wye) | 25 A | Two Stage |
Curtis Industries F3600T080 | General Purpose | Terminal Block | 60 Hz | 50 Hz | Chassis Mount | Three Phase (Wye) | 80 A | Two Stage |
Curtis Industries F3600T180 | General Purpose | Terminal Block | 60 Hz | 50 Hz | Chassis Mount | Three Phase (Wye) | 180 A | Two Stage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 747.60 | |
Description
General part information
F3600T Series
Three Phase (Wye) EMC/EMI Line Filter 80 A 600V 50/60Hz Two Stage Terminal Block
