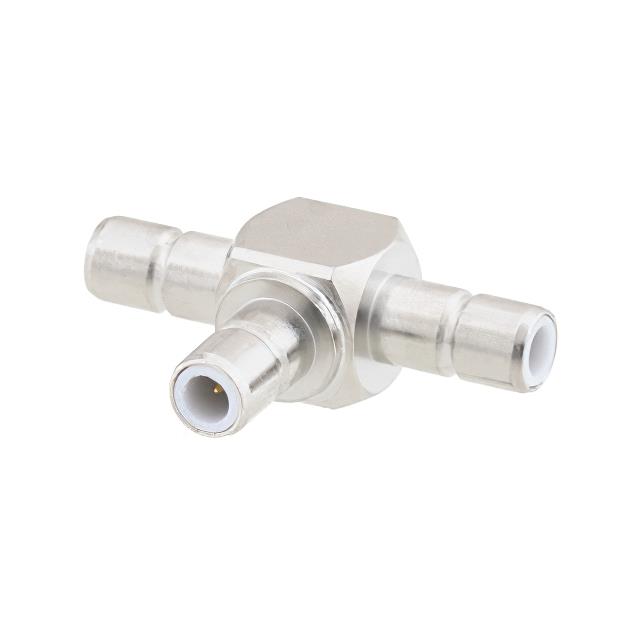

PE9302
ActivePasternack
SMB TEE ADAPTER JACK-JACK-JACK
PE9302
ActivePasternack
SMB TEE ADAPTER JACK-JACK-JACK
Description
General part information
PE9302
Adapter Coaxial Connector SMB Jack, Male Pin To SMB Jack, Male Pin (2) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9302 |
|---|---|
| Adapter Series | Dual, SMB to SMB |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Male Pin, SMB Jack |
| Convert To (Adapter End) | SMB Jack, Male Pin |
| Convert To (Adapter End) Count | 2 count |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | T-Shape |
