06R075BU
ObsoleteLITTELFUSE

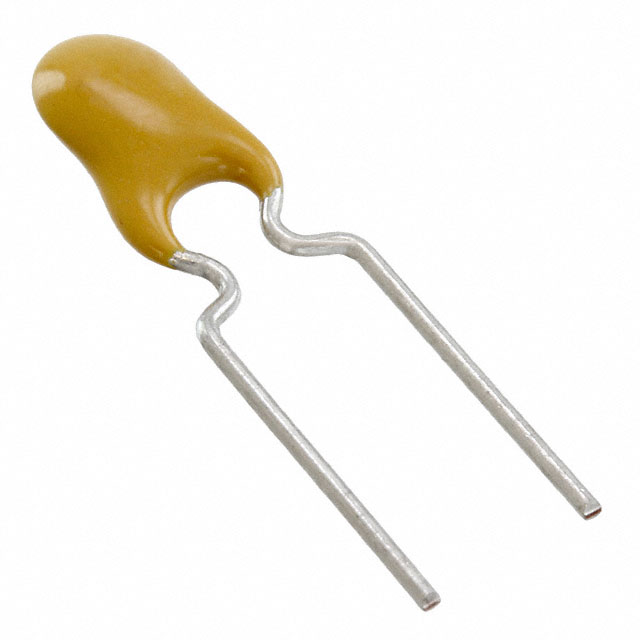

PTC RESET FUSE 6V 750MA RADIAL
06R075BU
ObsoleteLITTELFUSE
PTC RESET FUSE 6V 750MA RADIAL
Description
General part information
06R075BU
Polymeric PTC Resettable Fuse 6V 750 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | 06R075BU |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Max | 40 A |
| Current - Trip (It) | 1.3 A |
| Height - Seated (Max) | 0.449 in |
| Lead Spacing | 0.201 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) | 100 mOhms |
| Resistance - Post Trip (R1) (Max) | 230 mOhms |
| Size / Dimension Diameter | 0.272 in |
| Size / Dimension Thickness | 0.118 in |
| Time to Trip | 400 ms |
| Type | Polymeric |
| Voltage - Max | 6 V |
