Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CCALTR3135-X | CCALTR Series |
|---|---|---|
| Color | Natural | Natural |
| Height [z] | 115.06 mm | 99.06 - 189.99 mm |
| Height [z] | 4.53 in | 3.9 - 132.08 in |
| Length | - | 98.04 - 180.09 mm |
| Length | - | 3.86 - 7.09 " |
| Length | - | 98.81 - 163.07 mm |
| Length | - | 3.89 - 6.42 in |
| Material | Aluminum | Aluminum |
| Type | Clamp, Cleat | Clamp, Cleat |
| Type Attributes | Adjustable | Adjustable |
| Width [x] | 55.12 mm | 55.12 mm |
| Width [x] | 2.17 " | 2.17 " |
CCALTR Series
CABLE MOUNTING & ACCESSORIES CABLE CLEAT, ALUMINUM, TREFOIL CONFIGURA
| Part | Width [x] | Width [x] | Length | Length | Height [z] | Height [z] | Material | Type | Color | Type Attributes | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp CCALTR4651-X | 55.12 mm | 2.17 " | 132.08 mm | 5.2 " | 5.71 in | 145.03 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | ||
Panduit Corp CCALTR2730-X | 55.12 mm | 2.17 " | 98.04 mm | 3.86 " | 4.17 in | 105.92 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | ||
Panduit Corp CCALTR3438-X | 55.12 mm | 2.17 " | 4.72 in | 119.89 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | 103.89 mm | 4.09 in | ||
Panduit Corp CCALTR4347-X | 55.12 mm | 2.17 " | 123.95 mm | 4.88 " | 5.39 in | 136.91 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | ||
Panduit Corp CCALTR2326-X | 55.12 mm | 2.17 " | 3.9 in | 99.06 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | ||||
Panduit Corp CCALTR6675-X | 55.12 mm | 2.17 " | 180.09 mm | 7.09 in | 7.48 in | 189.99 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | ||
Panduit Corp CCALTR5561-X | 55.12 mm | 2.17 " | 6.42 in | 163.07 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | 151.89 mm | 5.98 in | ||
Panduit Corp CCALTR6067-X | 55.12 mm | 2.17 " | 6.89 in | 175.01 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | 163.07 mm | 6.42 in | ||
Panduit Corp CCALTR2932-X | 55.12 mm | 2.17 " | 4.33 in | 109.98 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | 98.81 mm | 3.89 in | ||
Panduit Corp CCALTR3741-X | 55.12 mm | 2.17 " | 113.03 mm | 4.96 in | 125.98 mm | Aluminum | Clamp, Cleat | Natural | Adjustable | 4.45 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CCALTR Series

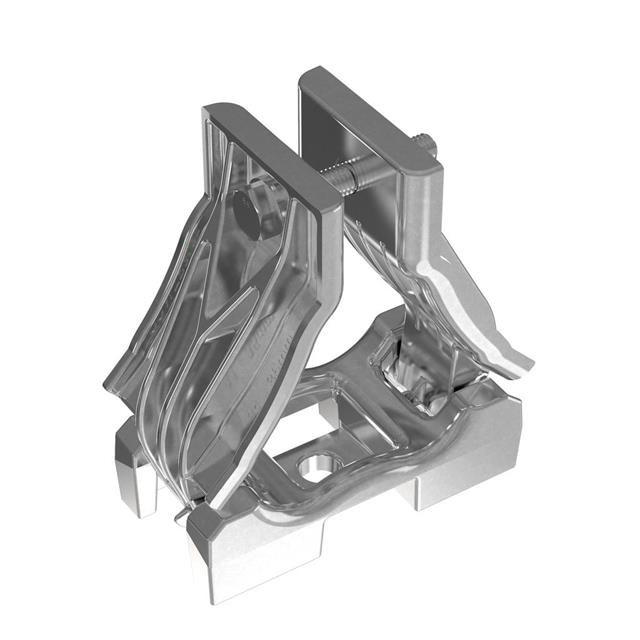

Cable Clamp, Cleat Natural
