651262-BB-0N

Active

Carling Technologies

ROCKER SWITCHES 1-POLE, (ON) - NONE - OFF, 10A 125-250VAC 1/4 HP, NON-ILLUMINATED MATTE BLACK ROCKER SWITCH WITH .187 TAB (Q.C.)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

651262-BB-0N

Active

Carling Technologies

ROCKER SWITCHES 1-POLE, (ON) - NONE - OFF, 10A 125-250VAC 1/4 HP, NON-ILLUMINATED MATTE BLACK ROCKER SWITCH WITH .187 TAB (Q.C.)

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	32	$ 3.49
Newark	Each	1	$ 2.46
		10	$ 2.39
		25	$ 2.29
		50	$ 2.20
		100	$ 2.16
		250	$ 2.12
Sager	N/A	1	$ 3.17
		57	$ 2.93
		200	$ 1.95
		496	$ 1.43
		992	$ 1.30
		1984	$ 1.26

Description

General part information

651262 Series

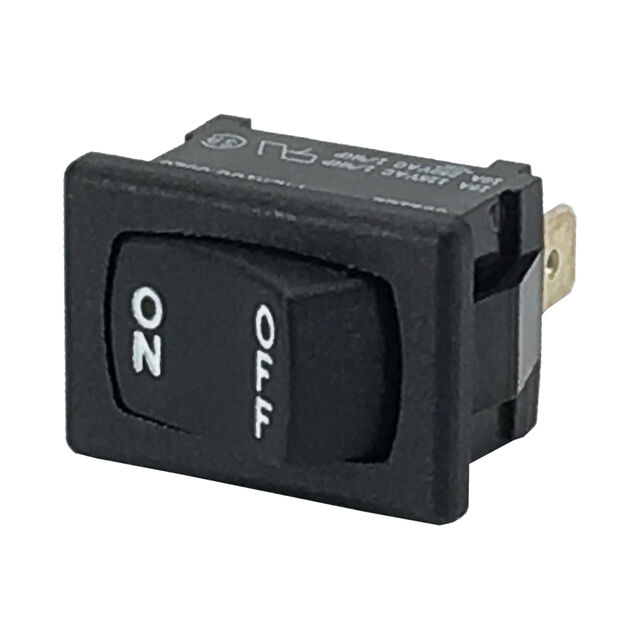

The 651262-BB-0N is a single-pole single-throw (SPST) sub-miniature Rocker Switch with 0.187-inch tab terminal, a black actuator and ON-NONE-OFF function. The 651 series switch fits in a standard rectangular cut-out and is designed to provide ease of insertion along with superior panel retention qualities. A high profile rocker contacts provide the user with a crisp positive-type feel.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Document

Specification	651262-BB-0N	651262 Series

Actuator Marking	No Marking	No Marking, O, O -, O I, OFF ON, Vertical
Actuator Type	Concave (Curved)	Concave (Curved)
Approval Agency	CSA, UL	CSA, UL
Circuit	SPST-NO	SPST-NO, SPST-NC
Color - Actuator/Cap	Black	White, Black, Red
Current Rating (Amps)	12 A	10 - 12 A
Electrical Life	50000 Cycles	50000 Cycles
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions	Rectangular	Rectangular
Panel Cutout Dimensions [x]	19.2 mm	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm	12.9 mm
Switch Function	Off-Mom	Off-Mom, On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V

Part	Operating Temperature [Max]	Switch Function	Actuator Type	Approval Agency	Mechanical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Circuit	Color - Actuator/Cap	Termination Style	Actuator Marking	Current Rating (Amps)	Voltage Rating - AC	Electrical Life	Mounting Type
Carling Technologies 651262-WB-0N	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	White	Quick Connect - 0.187" (4.7mm)	No Marking	12 A	125 V	50000 Cycles	Panel Mount, Snap-In
Carling Technologies 651262-WW-FN	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	White	Quick Connect - 0.187" (4.7mm)	O	12 A	125 V	50000 Cycles	Panel Mount, Snap-In
Carling Technologies 651262-BB-EN	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	Black	Quick Connect - 0.187" (4.7mm)	O -	12 A	125 V	50000 Cycles	Panel Mount, Snap-In
Carling Technologies 651262-WW-0N	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	White	Quick Connect - 0.187" (4.7mm)	No Marking	12 A	125 V	50000 Cycles	Panel Mount, Snap-In
Carling Technologies 651262-BB-8W	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	Black, White	Quick Connect - 0.187" (4.7mm)	O I	10 A	125 V	50000 Cycles	Panel Mount, Snap-In
Carling Technologies 651262-BB-0V	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	Black	Quick Connect - 0.187" (4.7mm)	No Marking	12 A	125 V	50000 Cycles	Panel Mount, Snap-In
Carling Technologies 651262-BB-9V	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	Black, Red	Quick Connect - 0.187" (4.7mm)	O -	10 A	125 V	50000 Cycles	Panel Mount, Snap-In
Carling Technologies 651262-BB-9W	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	Black	Quick Connect - 0.187" (4.7mm)	O -	12 A	125 V	50000 Cycles	Panel Mount, Snap-In
Carling Technologies 651262-BB-1V	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	Black, Red	Quick Connect - 0.187" (4.7mm)	OFF ON, Vertical	10 A	125 V	50000 Cycles	Panel Mount, Snap-In
Carling Technologies 651262-RB-0N	85 °C	Off-Mom	Concave (Curved)	CSA, UL	100000 Cycles	12.9 mm	Rectangular	19.2 mm	SPST-NO	Red	Quick Connect - 0.187" (4.7mm)	No Marking	12 A	125 V	50000 Cycles	Panel Mount, Snap-In

Part

Operating Temperature [Min]

Operating Temperature [Max]

Switch Function

Actuator Type

Approval Agency

Mechanical Life

Panel Cutout Dimensions [y]

Panel Cutout Dimensions

Panel Cutout Dimensions [x]

Circuit

Color - Actuator/Cap

Termination Style

Actuator Marking

Current Rating (Amps)

Voltage Rating - AC

Electrical Life

Mounting Type

Carling Technologies

651262-WB-0N

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

White

Quick Connect - 0.187" (4.7mm)

No Marking

12 A

125 V

50000 Cycles

Panel Mount, Snap-In

Carling Technologies

651262-WW-FN

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

White

Quick Connect - 0.187" (4.7mm)

12 A

125 V

50000 Cycles

Panel Mount, Snap-In

Carling Technologies

651262-BB-EN

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

Black

Quick Connect - 0.187" (4.7mm)

O -

12 A

125 V

50000 Cycles

Panel Mount, Snap-In

Carling Technologies

651262-WW-0N

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

White

Quick Connect - 0.187" (4.7mm)

No Marking

12 A

125 V

50000 Cycles

Panel Mount, Snap-In

Carling Technologies

651262-BB-8W

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

Black, White

Quick Connect - 0.187" (4.7mm)

O I

10 A

125 V

50000 Cycles

Panel Mount, Snap-In

Carling Technologies

651262-BB-0V

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

Black

Quick Connect - 0.187" (4.7mm)

No Marking

12 A

125 V

50000 Cycles

Panel Mount, Snap-In

Carling Technologies

651262-BB-9V

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

Black, Red

Quick Connect - 0.187" (4.7mm)

O -

10 A

125 V

50000 Cycles

Panel Mount, Snap-In

Carling Technologies

651262-BB-9W

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

Black

Quick Connect - 0.187" (4.7mm)

O -

12 A

125 V

50000 Cycles

Panel Mount, Snap-In

Carling Technologies

651262-BB-1V

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

Black, Red

Quick Connect - 0.187" (4.7mm)

OFF ON, Vertical

10 A

125 V

50000 Cycles

Panel Mount, Snap-In

Carling Technologies

651262-RB-0N

0 °C

85 °C

Off-Mom

Concave (Curved)

CSA, UL

100000 Cycles

12.9 mm

Rectangular

19.2 mm

SPST-NO

Red

Quick Connect - 0.187" (4.7mm)

No Marking

12 A

125 V

50000 Cycles

Panel Mount, Snap-In
