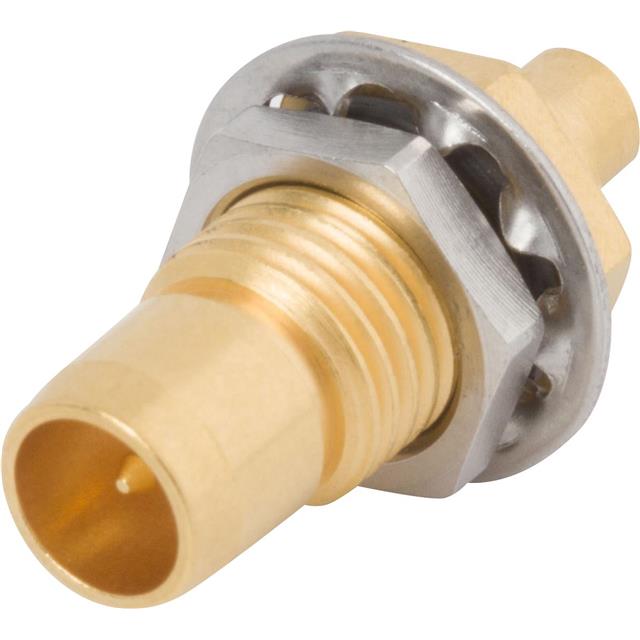

1408-6002
ActiveAmphenol SV Microwave
CONN BMMA PLUG STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1408-6002
ActiveAmphenol SV Microwave
CONN BMMA PLUG STR 50OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1408-6002 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | 0.085 in |
| Cable Group | RG-405 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BMMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 28 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mating Cycles | 5000 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 25.86 | |
Description
General part information
1408-6002
BMMA Connector Plug, Male Pin 50 Ohms Panel Mount Solder
