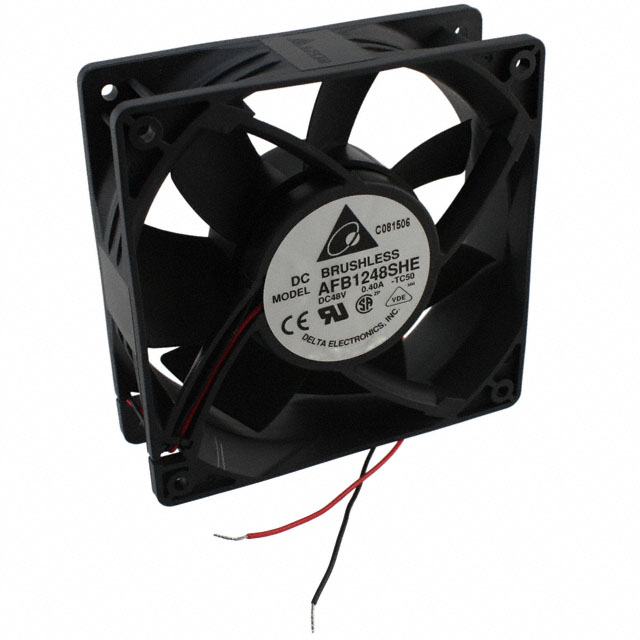

AFB1248SHE-TC50

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans VDE Cert +2

AFB1248SHE-TC50

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB1248SHE-TC50

Air Flow	190.5 CFM
Air Flow	5.33 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.31 A
Fan Type	Tubeaxial
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	14.88 W
RPM	4100 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.694 in H2O
Static Pressure	173 Pa
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	24 VDC
Weight	330.22 g
Weight	0.728 lb
Width [y]	38 mm

AFB1248 Series

Part	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [y]	Noise	Ingress Protection	Material - Frame	Voltage - Rated [custom]	RPM	Fan Type	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Bearing Type	Lifetime @ Temp.	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Weight	Weight	Static Pressure	Static Pressure	Termination	Power (Watts)	Features
Delta Electronics AFB1248HE-T500	-10 °C	-10 °C	60 °C	60 °C	38 mm	41 dB	IP55 - Dust Protected Water Resistant	Plastic	48 VDC	2600 RPM	Tubeaxial	2.97 mł/min	105.9 CFM	120 mm	120 mm	120 mA	Ball	70000 Hrs	CE CSA UL VDE	28 V	56 VDC	Plastic	256.28 g	0.565 lb	74.7 Pa	0.3 in H2O	2 Wire Leads
Delta Electronics AFB1248HE	-10 °C	-10 °C	60 °C	60 °C	38 mm	41 dB		Plastic	48 VDC	2600 RPM	Tubeaxial	2.97 mł/min	105.9 CFM	120 mm	120 mm	120 mA	Ball	70000 Hrs	CE CSA UL VDE	28 V	56 VDC	Plastic	256.28 g	0.565 lb	74.7 Pa	0.3 in H2O	2 Wire Leads
Delta Electronics AFB1248SHEB8T					38 mm				48 VDC		Tubeaxial			120 mm	120 mm				CE CSA UL VDE
Delta Electronics AFB1248VHE-T9LN	-40 °C	-40 °C	70 °C	70 °C	38 mm	55.5 dB	IP55 - Dust Protected Water Resistant	Plastic	48 VDC	4100 RPM	Tubeaxial	5.33 m³/min	190.5 CFM	120 mm	120 mm	0.31 A	Ball	70000 Hrs	CE CSA UL VDE	34 VDC	56 VDC	Plastic	330.22 g	0.728 lb	173 Pa	0.694 in H2O	4 Wire Leads	14.88 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics AFB1248EHE-C	-10 °C	-10 °C	70 °C	70 °C	38 mm	58.5 dB		Plastic	48 VDC	4600 RPM	Tubeaxial	5.95 m³/min	212.6 CFM	120 mm	120 mm	480 mA	Ball	70000 Hrs	CE CSA UL VDE	24 VDC	56 VDC	Plastic	330.22 g	0.728 lb	210.2 Pa	0.844 in H2O	2 Wire Leads	23 W
Delta Electronics AFB1248SHE-TC50	-10 °C	-10 °C	70 °C	70 °C	38 mm	55.5 dB	IP55 - Dust Protected Water Resistant	Plastic	48 VDC	4100 RPM	Tubeaxial	5.33 m³/min	190.5 CFM	120 mm	120 mm	0.31 A	Ball	70000 Hrs	CE CSA UL VDE	24 VDC	56 VDC	Plastic	330.22 g	0.728 lb	173 Pa	0.694 in H2O	2 Wire Leads	14.88 W
Delta Electronics AFB1248VHE-TP18	-40 °C	-40 °C	70 °C	70 °C	38 mm	55.5 dB		Plastic	48 VDC	4100 RPM	Tubeaxial	5.33 m³/min	190.5 CFM	120 mm	120 mm	0.31 A	Ball	70000 Hrs	CE CSA UL VDE	34 VDC	56 VDC	Plastic	330.22 g	0.728 lb	173 Pa	0.694 in H2O	4 Wire Leads	14.88 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics AFB1248HE-F00	-10 °C	-10 °C	60 °C	60 °C	38 mm	41 dB		Plastic	48 VDC	2600 RPM	Tubeaxial	2.97 mł/min	105.9 CFM	120 mm	120 mm	120 mA	Ball	70000 Hrs	CE CSA UL VDE	28 V	56 VDC	Plastic	256.28 g	0.565 lb	74.7 Pa	0.3 in H2O	3 Wire Leads		Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB1248HHE-R00	-10 °C	-10 °C	60 °C	60 °C	38 mm	44 dB		Plastic	48 VDC	2900 RPM	Tubeaxial	3.36 m³/min	120.1 CFM	120 mm	120 mm	150 mA	Ball	70000 Hrs	CE CSA UL VDE	28 V	56 VDC	Plastic	256.28 g	0.565 lb	88.2 Pa	0.354 in H2O	3 Wire Leads	7.2 W	Locked Rotor Sensor
Delta Electronics AFB1248SHF-R00					32 mm	56 dB		Plastic	48 VDC	4300 RPM	Tubeaxial	4.89 m³/min	174.5 CFM	120 mm	120 mm	0.35 A	Ball		CE CSA UL VDE	24 VDC	56 VDC	Plastic	276.24 g	0.609 lb	163.4 Pa	0.656 in H2O	3 Wire Leads	16.8 W	Locked Rotor Sensor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.03
		10	$ 32.81
		25	$ 30.31
		50	$ 28.54
		100	$ 26.87

Description

General part information

AFB1248 Series

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 190.5 CFM (5.33m³/min) 2 Wire Leads
