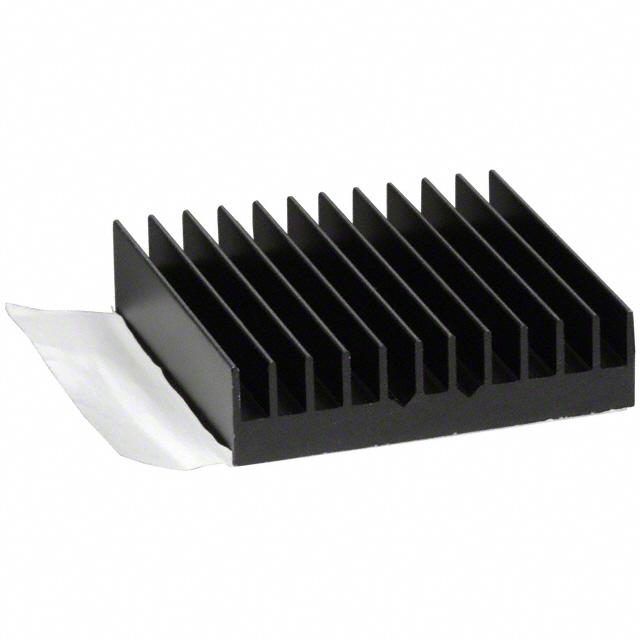

ATS-54375D-C1-R0 - ATS-54375D-C2-R0

ATS-54375D-C1-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINKS EXTRUSION, 2 SIDE THERMAL TAPE, BLACK ANODIZE, T412, 37.5X37.5X9.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet
ATS-54375D-C1-R0 - ATS-54375D-C2-R0

ATS-54375D-C1-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINKS EXTRUSION, 2 SIDE THERMAL TAPE, BLACK ANODIZE, T412, 37.5X37.5X9.5MM

Deep-Dive with AI

DocumentsDatasheetDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationATS-54375D-C1-R0
Attachment MethodThermal Tape, Adhesive (Included)
Fin Height0.374 in
Fin Height9.5 mm
Length37.5 mm
Length1.476 in
MaterialAluminum
Material FinishBlack Anodized
Package CooledBGA
ShapeSquare, Fins
Thermal Resistance @ Forced Air Flow10 °C/W, 200 LFM
TypeTop Mount
Width [y]1.476 in
Width [y]37.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 8.99
10$ 7.96
25$ 7.58
50$ 7.30
100$ 7.04
250$ 5.92
300$ 6.64
500$ 6.46
1000$ 6.23
SagerN/A 1$ 8.20
5$ 7.65
10$ 7.41
25$ 6.96
50$ 6.56
100$ 6.12
500$ 5.96
TMEN/A 1$ 14.14
5$ 12.92
10$ 11.61
20$ 10.96
50$ 10.52

Description

General part information

ATS-54375D-C1-R0

Heat Sink BGA Aluminum Top Mount
