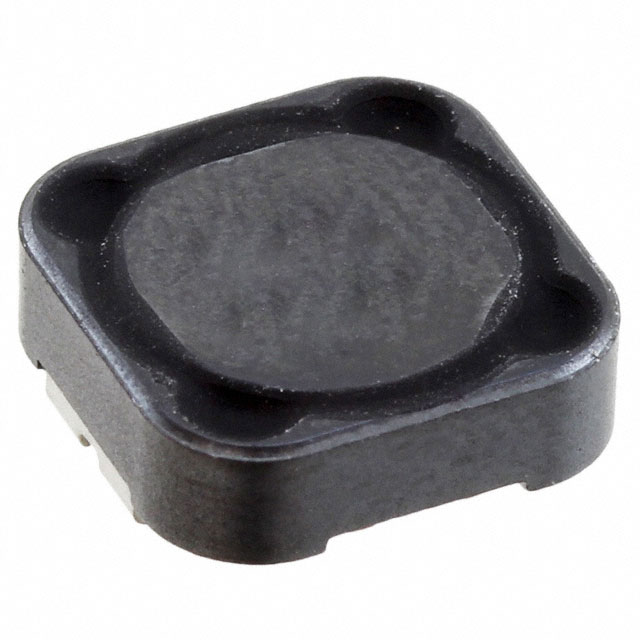

CDRH124NP-390MC
ActiveSumida America Components Inc.
FIXED IND 39UH 2.1A 132 MOHM SMD
CDRH124NP-390MC
ActiveSumida America Components Inc.
FIXED IND 39UH 2.1A 132 MOHM SMD
Description
General part information
CDRH124NP-390MC
39 µH Shielded Inductor 2.1 A 132mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH124NP-390MC |
|---|---|
| Current Rating | 2.1 A |
| DC Resistance (DCR) (Max) | 132 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 39 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.472 in |
| Tolerance | 20 % |
