FMHR0130-36
ActiveFairview Microwave
CBL ASSY SMAPLUG-TNCJACK 36
FMHR0130-36
ActiveFairview Microwave
CBL ASSY SMAPLUG-TNCJACK 36
Description
General part information
FMHR0130-36

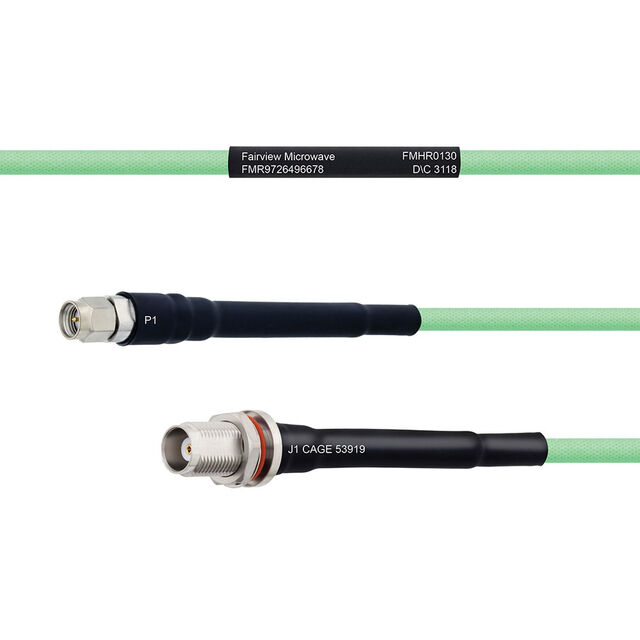

Cable Assembly Coaxial SMA to TNC 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0130-36 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
