Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VNV35N07TR-E | VNV35 Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 25 A | 25 - 30 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed), Over Voltage | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature | - | 150 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |

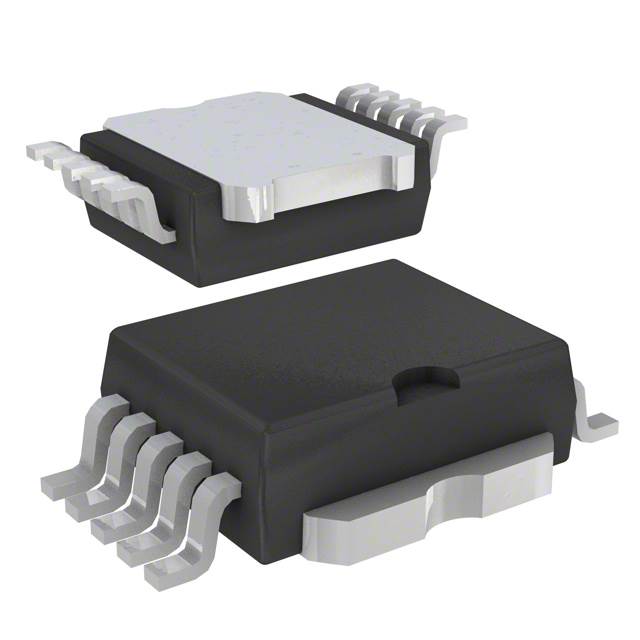

| Package / Case | PowerSO-10 Exposed Bottom Pad | PowerSO-10 Exposed Bottom Pad |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 28 mOhm | 28 mOhm |
| Rds On (Typ) | - | 10 mOhm |
| Supplier Device Package | 10-PowerSO | 10-PowerSO |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load | 55 V | 36 - 55 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.88 | |
| 10 | $ 3.93 | |||
| 100 | $ 2.83 | |||
| Digi-Reel® | 1 | $ 5.88 | ||
| 10 | $ 3.93 | |||
| 100 | $ 2.83 | |||
| Tape & Reel (TR) | 600 | $ 2.31 | ||
| 1200 | $ 2.25 | |||
VNV35 Series
IC PWR DRIVER N-CHAN 1:1 PWRSO10
| Part | Fault Protection | Voltage - Load | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Output Type | Current - Output (Max) [Max] | Package / Case | Output Configuration | Voltage - Supply (Vcc/Vdd) | Input Type | Rds On (Typ) [Max] | Switch Type | Supplier Device Package | Mounting Type | Ratio - Input:Output [custom] | Number of Outputs | Rds On (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VNV35NV04-E | Current Limiting (Fixed), Over Temperature, Over Voltage | 36 V | 150 °C | -40 °C | On/Off | N-Channel | 30 A | PowerSO-10 Exposed Bottom Pad | Low Side | Non-Inverting | 10 mOhm | General Purpose | 10-PowerSO | Surface Mount | 1:1 | 1 | ||
STMicroelectronics VNV35NV04TR-E | Current Limiting (Fixed), Over Temperature, Over Voltage | 36 V | 150 °C | -40 °C | On/Off | N-Channel | 30 A | PowerSO-10 Exposed Bottom Pad | Low Side | Non-Inverting | 10 mOhm | General Purpose | 10-PowerSO | Surface Mount | 1:1 | 1 | ||
STMicroelectronics VNV35N07TR-E | ||||||||||||||||||
STMicroelectronics VNV35N07-E | Current Limiting (Fixed), Over Temperature, Over Voltage | 55 V | On/Off | N-Channel | 25 A | PowerSO-10 Exposed Bottom Pad | Low Side | Non-Inverting | General Purpose | 10-PowerSO | Surface Mount | 1:1 | 1 | 28 mOhm | ||||
STMicroelectronics VNV35N07TR-E | Current Limiting (Fixed), Over Temperature, Over Voltage | 55 V | On/Off | N-Channel | 25 A | PowerSO-10 Exposed Bottom Pad | Low Side | Non-Inverting | General Purpose | 10-PowerSO | Surface Mount | 1:1 | 1 | 28 mOhm | ||||
STMicroelectronics VNV35NV0413TR | Current Limiting (Fixed), Over Temperature, Over Voltage | 36 V | 150 °C | -40 °C | On/Off | N-Channel | 30 A | PowerSO-10 Exposed Bottom Pad | Low Side | Non-Inverting | 10 mOhm | General Purpose | 10-PowerSO | Surface Mount | 1:1 | 1 | ||
STMicroelectronics VNV35N07TR-E |
Description
General part information
VNV35 Series
The VNP35N07-E, VNB35N07-E and VNV35NV07-E are monolithic devices made using STMicroelectronics VIPower®technology, intended for replacement of standard Power MOSFETs in DC to 50 KHz applications.
Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments.
Fault feedback can be detected by monitoring the voltage at the input pin.
