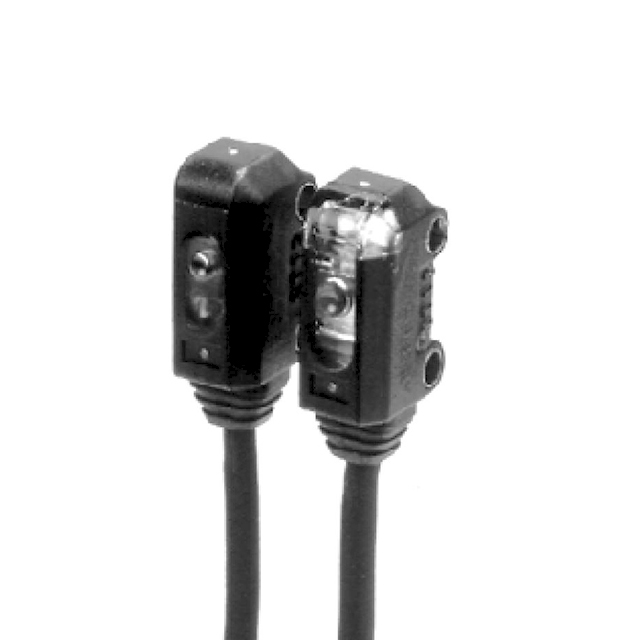

E3T-ST14
ActiveOmron Automation and Safety
SENSOR THROUGH-BEAM 1M PNP
E3T-ST14
ActiveOmron Automation and Safety
SENSOR THROUGH-BEAM 1M PNP
Description
General part information
E3T-ST14
Through-Beam Optical Sensor 39.370" (1m) PNP - Open Collector/Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | E3T-ST14 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Cable |
| Ingress Protection | IEC IP67, IEC, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 650 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP - Open Collector, Dark-ON |
| Response Time | 1 ms |
| Sensing Distance | 39.37 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
