1619913
ActivePhoenix Contact
CONN RCPT MALE 7POS GOLD SOLDER
1619913
ActivePhoenix Contact
CONN RCPT MALE 7POS GOLD SOLDER
Description
General part information
1619913

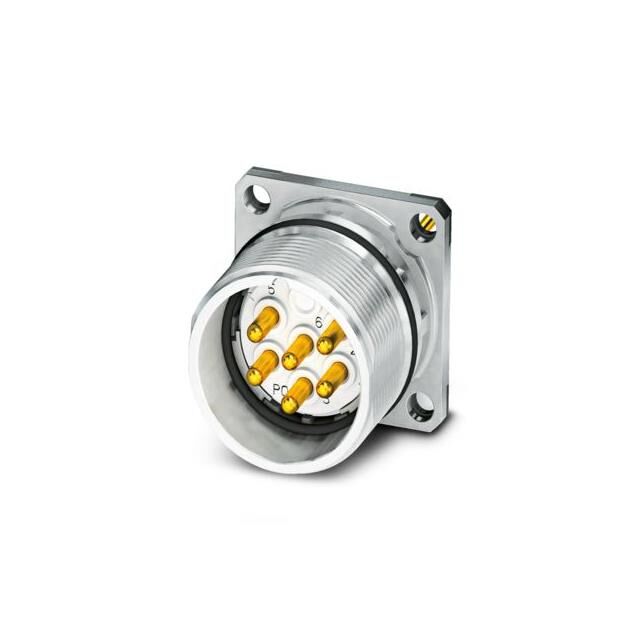

7 (Power) Position Circular Connector Receptacle, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1619913 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Fastening Type | Push-Twist |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PBT, Polybutylene Terephthalate |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 7 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | Power |
| Primary Material | Metal |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M23-7 |
| Shielding | Shielded |
| Termination | Solder |
