1411093

Active

Phoenix Contact

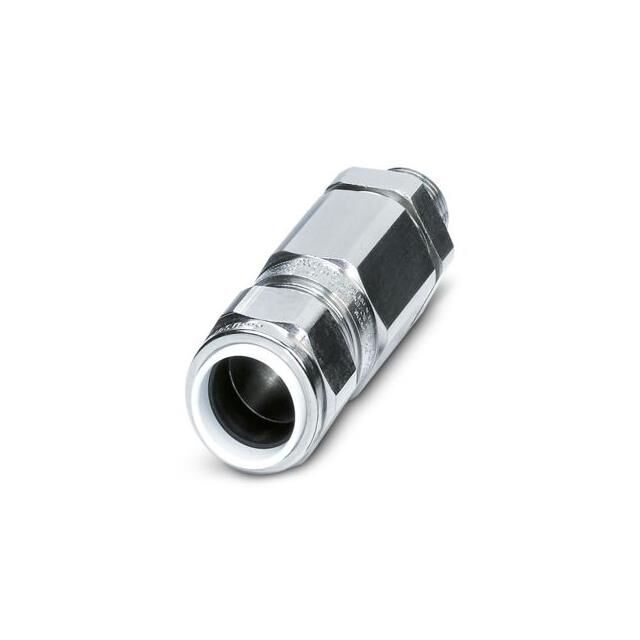

CABLE GLAND 18.2-26.2MM M25

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 18.2-26.2MM M25

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411093	G-EDSWU Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Material	Stainless Steel	Stainless Steel
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-60 °C	-60 °C
Outside Cable Diameter (Max)	-	15.9 mm
Outside Cable Diameter (Max)	-	0.626 "
Outside Cable Diameter (Max) [Max]	1.031 in, 26.2 mm	1.031 - 26.2 in
Outside Cable Diameter (Min) [Min] [diameter]	18.2 mm	9.5 - 18.2 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.717 in	0.374 - 0.717 in
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	M25	M20, M25
Type	Cable Gland	Cable Gland

CABLE GLAND 9.5-15.9MM M20

Part	Ingress Protection	Thread Size	Includes	Material	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max]
Phoenix Contact 1411089	IP66, IP67, IP68	M20	O-Ring, Seal	Stainless Steel	Silver	15.9 mm	0.626 "	Cable Gland	0.591 in	15 mm	0.374 in	9.5 mm	130 °C	-60 °C
Phoenix Contact 1411093	IP66, IP67, IP68	M25	O-Ring, Seal	Stainless Steel	Silver			Cable Gland	0.591 in	15 mm	0.717 in	18.2 mm	130 °C	-60 °C	1.031 in, 26.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 147.71

General part information

Cable Gland Stainless Steel M25 Silver
