87141734

Active

Murrplastik Systems, Inc.

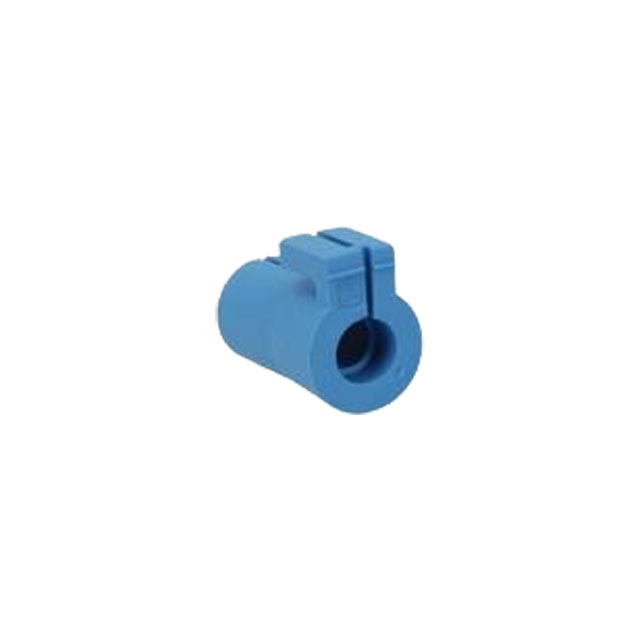

KDT/X-FDA 14 GROMMET 14-15 MM

Search across all available documentation for this part.

Active

Murrplastik Systems, Inc.

KDT/X-FDA 14 GROMMET 14-15 MM

Technical Specifications

Parameters and characteristics for this part

Specification	87141734

Bushing, Grommet Type	Frame Grommet, Split
Color	Blue
Diameter - Inside [Max] [diameter]	0.591 in
Diameter - Inside [Max] [diameter]	15 mm
Diameter - Inside [Min] [diameter]	0.551 in
Diameter - Inside [Min] [diameter]	14 mm
For Use With/Related Products	Wires, Cable
Material	Thermoplastic Elastomer (TPE)

Part	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Bushing, Grommet Type	For Use With/Related Products	Color	Material	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]
Murrplastik Systems, Inc. 87141720	8 mm	7 mm	0.315 in	0.276 in	Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)
Murrplastik Systems, Inc. 87141724	10 mm	9 mm	0.394 "	0.354 "	Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)
Murrplastik Systems, Inc. 87141712	4 mm	3 mm	0.157 in	0.118 in	Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)
Murrplastik Systems, Inc. 87141758	27 mm	26 mm	1.063 "	1.024 in	Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)
Murrplastik Systems, Inc. 87141740		17 mm	0.709 in	0.669 in	Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)	18 mm
Murrplastik Systems, Inc. 87141730	0.512 "	0.472 "			Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)	13 mm	12 mm
Murrplastik Systems, Inc. 87141764	30 mm	29 mm	1.181 "	1.142 "	Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)
Murrplastik Systems, Inc. 87141746	21 mm	20 mm	0.827 "	0.787 "	Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)
Murrplastik Systems, Inc. 87141738			0.669 in 17 mm	0.63 in 16 mm	Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)
Murrplastik Systems, Inc. 87141710	3 mm	2 mm	0.118 in	0.079 in	Frame Grommet Split	Cable Wires	Blue	Thermoplastic Elastomer (TPE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 4.93

General part information

Frame Grommet, Split 0.551" ~ 0.591" (14.00mm ~ 15.00mm) Blue
