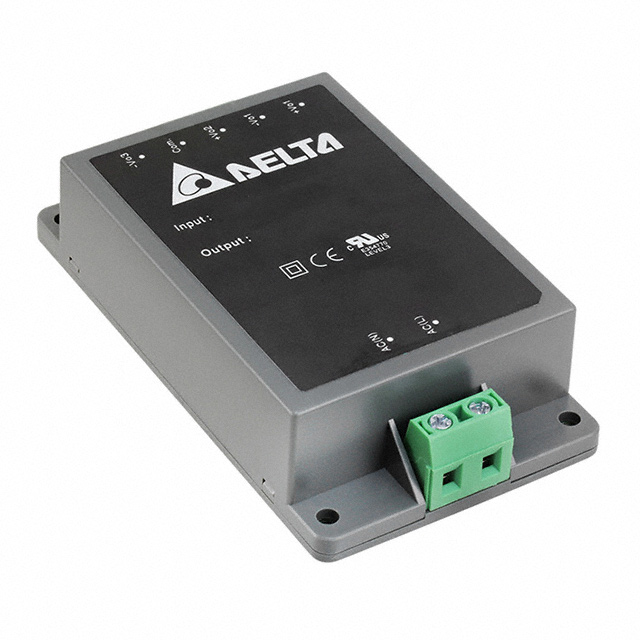

AB60S1200D
ObsoleteDelta Electronics
AC/DC DIN RAIL SUPPLY 12V 60W
AB60S1200D
ObsoleteDelta Electronics
AC/DC DIN RAIL SUPPLY 12V 60W
Description
General part information
AB60S1200D
AC/DC DIN RAIL SUPPLY 12V 60W
Technical Specifications
Parameters and characteristics for this part
| Specification | AB60S1200D |
|---|---|
| AC Voltage - Input (Max) | 264 VAC |
| AC Voltage - Input (Min) | 85 VAC |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE |
| Current - Output (Max) | 5 A |
| Efficiency | 87 % |
| Features | Universal Input |
| Input Type | AC |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 60 W |
| Size / Dimension Height | 1.5 in |
| Size / Dimension Length | 4.41 in |
| Size / Dimension Width | 2.67 in |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
