Specification	MT48LC16M16A2BG-75 IT:D TR

Access Time	5.4 ns
Clock Frequency	133 MHz
Memory Depth	16 M
Memory Format	DRAM
Memory Interface (Type)	Parallel
Memory Size	256 Mbit
Memory Type	Volatile
Memory Width	16 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C

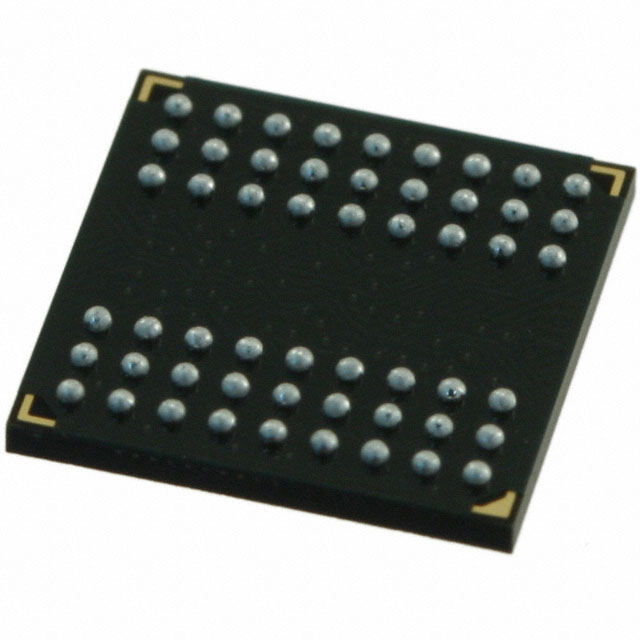

Package / Case	54-VFBGA
Package Length	8 mm
Package Name	54-VFBGA
Package Width	14 mm
Technology	SDRAM
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	3 V
Write Cycle Time - Page	15 ns
Write Cycle Time - Word	15 ns

MT48LC16M16A2 Series

Part	Clock Frequency	Memory Size	Memory Format	Package Length	Package Name	Package Width	Write Cycle Time - Word	Write Cycle Time - Page	Memory Interface (Type)	Operating Temperature (Min)	Operating Temperature (Max)	Memory Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Width	Memory Depth	Access Time	Technology	Mounting Type	Package / Case	Qualification	Grade
Micron Technology Inc. MT48LC16M16A2TG-75:D TR	133 MHz	256 Mbit	DRAM	10.16 mm	54-TSOP 54-TSOP II	10.16 mm	15 ns	15 ns	Parallel	0 °C	70 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount
Micron Technology Inc. MT48LC16M16A2B4-6A:G TR	167 MHz	256 Mbit	DRAM	8 mm	54-VFBGA	8 mm	12 ns	12 ns	Parallel	0 °C	70 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount	54-VFBGA
Micron Technology Inc. MT48LC16M16A2P-7E:G TR	133 MHz	256 Mbit	DRAM	10.16 mm	54-TSOP 54-TSOP II	10.16 mm	14 ns	14 ns	Parallel	0 °C	70 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount
Micron Technology Inc. MT48LC16M16A2P-6A:G TR	167 MHz	256 Mbit	DRAM	10.16 mm	54-TSOP 54-TSOP II	10.16 mm	12 ns	12 ns	Parallel	0 °C	70 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount
Micron Technology Inc. MT48LC16M16A2B4-6A AIT:G	167 MHz	256 Mbit	DRAM	8 mm	54-VFBGA	8 mm	12 ns	12 ns	Parallel	-40 °C	85 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount	54-VFBGA	AEC-Q100	Automotive
Micron Technology Inc. MT48LC16M16A2P-75 L:D TR	133 MHz	256 Mbit	DRAM	10.16 mm	54-TSOP 54-TSOP II	10.16 mm	15 ns	15 ns	Parallel	0 °C	70 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount
Micron Technology Inc. MT48LC16M16A2P-6A AAT:G	167 MHz	256 Mbit	DRAM	10.16 mm	54-TSOP 54-TSOP II	10.16 mm	12 ns	12 ns	Parallel	-40 °C	105 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount		AEC-Q100	Automotive
Micron Technology Inc. MT48LC16M16A2BG-75:D	133 MHz	256 Mbit	DRAM	8 mm	54-VFBGA	14 mm	15 ns	15 ns	Parallel	0 °C	70 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount	54-VFBGA
Micron Technology Inc. MT48LC16M16A2B4-6A AIT:G TR	167 MHz	256 Mbit	DRAM	8 mm	54-VFBGA	8 mm	12 ns	12 ns	Parallel	-40 °C	85 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount	54-VFBGA	AEC-Q100	Automotive
Micron Technology Inc. MT48LC16M16A2B4-7E:G TR	133 MHz	256 Mbit	DRAM	8 mm	54-VFBGA	8 mm	14 ns	14 ns	Parallel	0 °C	70 °C	Volatile	3.6 V	3 V	16 bit	16 M	5.4 ns	SDRAM	Surface Mount	54-VFBGA
