Description
General part information

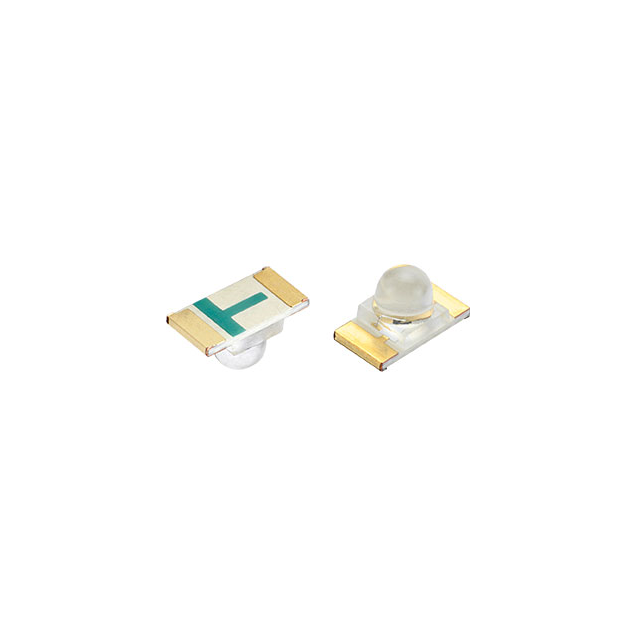

CSDK63G2C
Green 571nm LED Indication - Discrete 2.1V 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CSDK63G2C |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 0.95 mm |
| Lens Color | Colorless |
| Lens Diameter | 0.7 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 270 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Package Name | Chip LED |
| Size / Dimension Length | 1.6 mm |
| Size / Dimension Width | 0.8 mm |
| Viewing Angle | 55 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 571 nm |
| Wavelength - Peak | 573 nm |
