Description
General part information

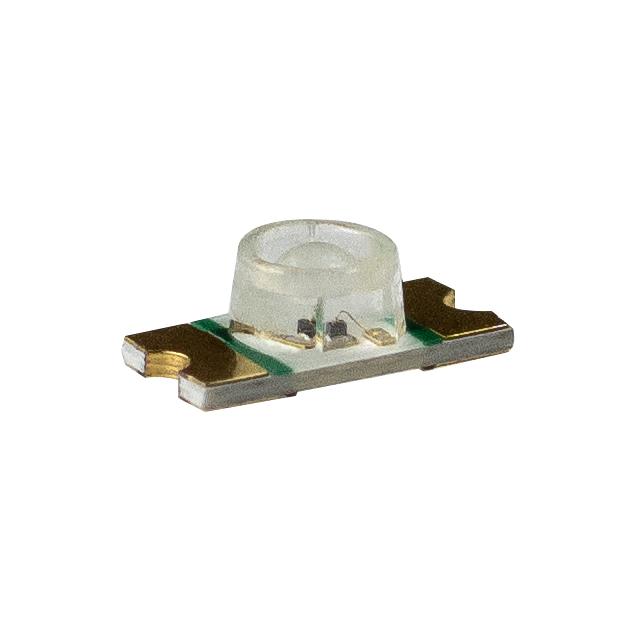

599-0560-127F
Yellow 571nm LED Indication - Discrete 2.1V 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 599-0560-127F |
|---|---|
| Color | Yellow |
| Current - Test | 20 mA |
| Height (Max) | 1.23 mm |
| Lens Color | Colorless |
| Lens Style | Irregular |
| Lens Transparency | Clear |
| Millicandela Rating | 203.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 1.6 mm |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 571 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
