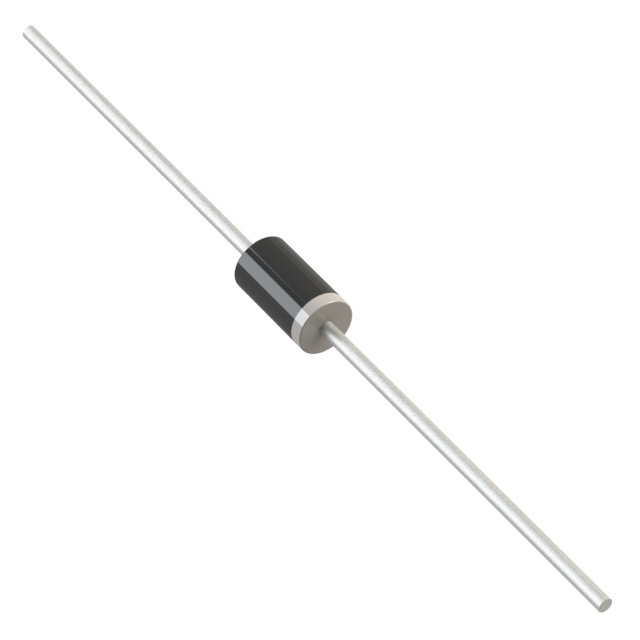

AG01V0

Active

Sanken Electric USA Inc.

DIODE GEN PURP 400V 700MA AXIAL

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

DIODE GEN PURP 400V 700MA AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AG01V0	AG01 Series

Current - Average Rectified (Io)	700 mA	500 - 700 mA
Current - Reverse Leakage @ Vr	100 µA	100 µA
Mounting Type	Through Hole	Through Hole
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-40 °C	-40 °C
Package / Case	Axial	Axial
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	Axial	Axial
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V	400 - 600 V
Voltage - Forward (Vf) (Max) @ If	1.8 V	1.8 V

DIODE GEN PURP 600V 500MA AXIAL

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Speed	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Package / Case
Sanken Electric USA Inc. AG01AV	600 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	500 mA	100 µA	Axial
Sanken Electric USA Inc. AG01V0	400 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	700 mA	100 µA	Axial
Sanken Electric USA Inc. AG01WS	400 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	700 mA	100 µA	Axial
Sanken Electric USA Inc. AG01A	600 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	500 mA	100 µA	Axial
Sanken Electric USA Inc. AG01V	400 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	700 mA	100 µA	Axial
Sanken Electric USA Inc. AG01AV1	600 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	500 mA	100 µA	Axial
Sanken Electric USA Inc. AG01AWK	600 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	500 mA	100 µA	Axial
Sanken Electric USA Inc. AG01WK	400 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	700 mA	100 µA	Axial
Sanken Electric USA Inc. AG01V1	400 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	700 mA	100 µA	Axial
Sanken Electric USA Inc. AG01AWS	600 V	150 °C	-40 °C	Axial	Through Hole	1.8 V	Standard	200 mA, 500 ns	500 mA	100 µA	Axial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 400 V 700mA Through Hole Axial
