9935 060500

Active

Belden Inc.

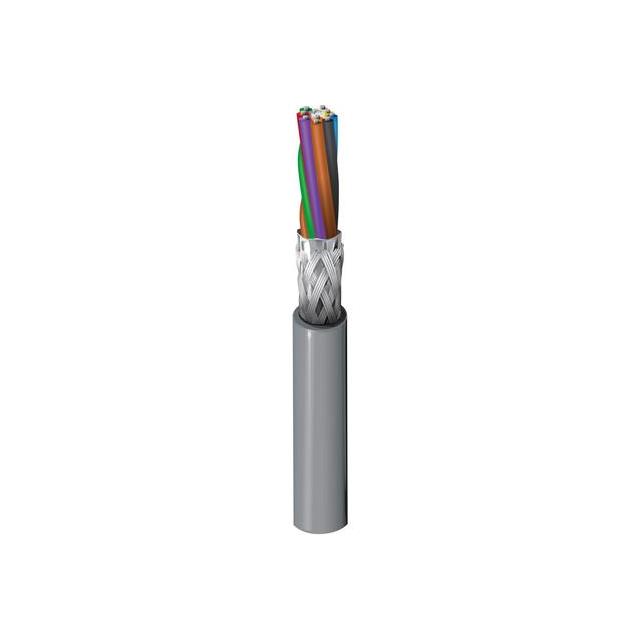

CABLE 10COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 10COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9935 060500

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	7.77 mm
Jacket (Insulation) Diameter [diameter]	0.306 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Insulation	Cable Type	Length	Length	Shield Coverage	Shield Type	Conductor Material	Wire Gauge	Shield Material	Features	Number of Conductors	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Belden Inc. 9935 0601000	32 AWG	7	-30 ░C	80 C	Computer	UL Style 2919	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	Foam Polyethylene (FPE)	Multi-Conductor	1000 ft	304.8 m	65 % 100 %	Braid Foil	Copper Tinned	24 AWG	Aluminum Copper Tinned	Drain Wire	10	Chrome	7.77 mm	0.306 in
Belden Inc. 9935 060500	32 AWG	7	-30 ░C	80 C	Computer	UL Style 2919	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	Foam Polyethylene (FPE)	Multi-Conductor			65 % 100 %	Braid Foil	Copper Tinned	24 AWG	Aluminum Copper Tinned	Drain Wire	10	Chrome	7.77 mm	0.306 in	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.70

General part information

10 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
