RFMTA280715IMAB301
ActiveWalsin Technology Corporation
RF ANT 2.4GHZ STAMPED MET IPEX
RFMTA280715IMAB301
ActiveWalsin Technology Corporation
RF ANT 2.4GHZ STAMPED MET IPEX
Description
General part information
RFMTA280715IMAB301

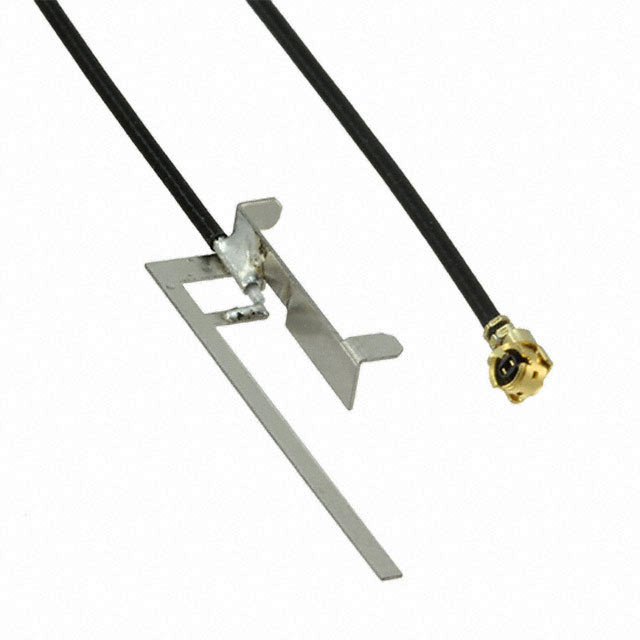

RF ANTENNA ISM Stamped Metal U.FL (UMCC), I-PEX MHF1 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | RFMTA280715IMAB301 |
|---|---|
| Antenna Type | Stamped Metal |
| Applications | ISM |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Gain | 2.8 dBi |
| Height (Max) | 0.142 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Return Loss | -10 dB |
| RF Family/Standard | General ISM |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 2 |
