78G01ST

Active

Grayhill Inc.

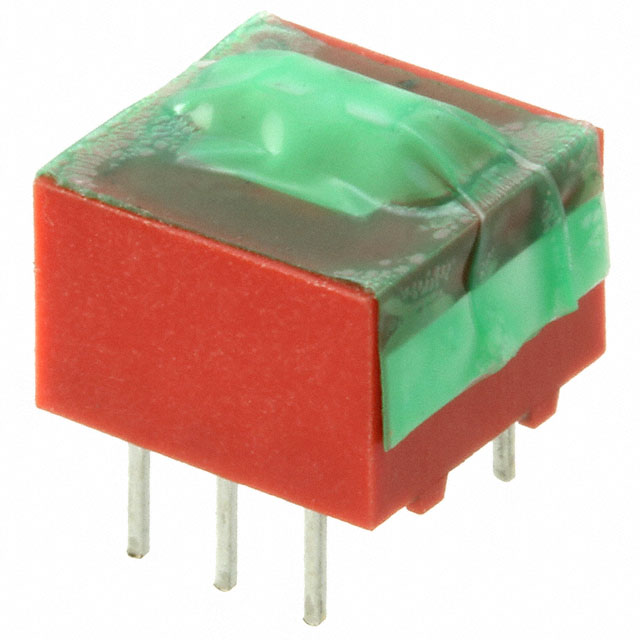

SWITCH SLIDE DIP 3PST 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP 3PST 0.15A 30V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	78G01ST	78G01 Series

Actuator Level	Raised	Raised
Actuator Type	Slide (Standard)	Slide (Standard)
Body Material	Thermoplastic	Plastic, Thermoplastic
Circuit	3PST	3PST
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Electrical Life	2000 Steps	2000 - 10000 Cycles
Features	Tape Seal	Tape Seal
Height Above Board [z]	8 mm	8 mm
Height Above Board [z]	0.315 in	0.315 in
Length	9.65 mm	9.65 mm
Length	0.38 in	0.38 in
Mechanical Life	2000 Cycles	2000 Cycles
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	30 VDC	30 VDC
Washable	True	False, True

SWITCH SLIDE DIP 3PST 0.15A 30V

Part	Voltage Rating	Body Material	Circuit	Number of Positions	Actuator Type	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Contact Material	Contact Finish	Length	Length	Electrical Life	Mechanical Life	Washable	Pitch [x]	Pitch	Pitch [x]	Features	Height Above Board [z]	Height Above Board [z]
Grayhill Inc. 78G01RAT	30 VDC	Plastic	3PST	1	Slide (Standard)	Raised	85 °C	-40 °C	PC Pin	Through Hole, Right Angle	Copper Alloy	Gold	9.65 mm	0.38 in	10000 Cycles	2000 Cycles		0.1 in	Full	2.54 mm
Grayhill Inc. 78G01ST	30 VDC	Thermoplastic	3PST	1	Slide (Standard)	Raised	85 °C	-40 °C	PC Pin	Through Hole	Copper Alloy	Gold	9.65 mm	0.38 in	2000 Steps	2000 Cycles		0.1 in	Full	2.54 mm	Tape Seal	8 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch 3PST 1 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
