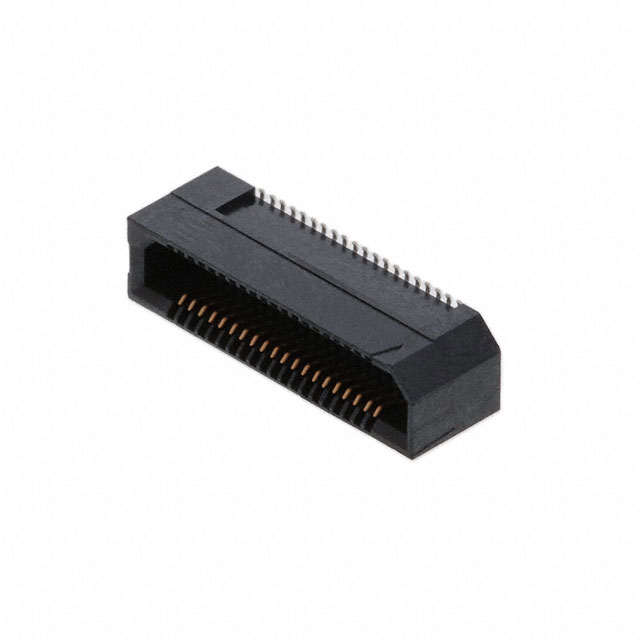

ERF8-020-07.0-L-DV-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED SOCKET STRIP SKT 40 POS 0.8MM SOLDER ST SMD EDGE RATE® T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERF8 Series Other Related Documents 01 +1

ERF8-020-07.0-L-DV-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED SOCKET STRIP SKT 40 POS 0.8MM SOLDER ST SMD EDGE RATE® T/R

Deep-Dive with AI

DocumentsDatasheet ERF8 Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-020-07.0-L-DV-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board [z]	0.285 in
Height Above Board [z]	7.24 mm
Mated Stacking Heights	16 mm, 22 mm, 15 mm, 9 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-060 Series

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Socket

...

Part	Number of Rows	Number of Positions	Mounting Type	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]
Samtec Inc. ERF8-050-05.0-L-DV-TR	2	100	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm	Outer Shroud Contacts Socket	0.21 in	5.33 mm	Board Guide	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-013-09.0-L-DV-TR	2	26	Surface Mount	11 mm 14 mm 17 mm 18 mm 24 mm	Outer Shroud Contacts Socket	0.358 "	9.1 mm	Board Guide	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-070-09.0-L-DV-K-TR	2	140	Surface Mount	11 mm 14 mm 17 mm 18 mm 24 mm	Outer Shroud Contacts Socket	0.358 "	9.1 mm	Board Guide Pick and Place	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-050-05.0-S-DV	2	100	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm	Outer Shroud Contacts Socket	0.21 in	5.33 mm	Board Guide	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-050-03-S-D-RA-L-TR	2	100	Surface Mount Right Angle		Outer Shroud Contacts Socket	0.246 in	6.25 mm	Board Guide Latches Mounting Flange	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-020-01-S-D-RA-EGP-TR	2	40	Surface Mount Right Angle		Outer Shroud Contacts Socket	0.246 in	6.25 mm	Board Guide Mounting Flange	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-050-03-L-D-RA-L-TR	2	100	Surface Mount Right Angle		Outer Shroud Contacts Socket	0.246 in	6.25 mm	Board Guide Latches Mounting Flange	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-060-05.0-S-DV-K-TR	2	120	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm	Outer Shroud Contacts Socket	0.21 in	5.33 mm	Board Guide Pick and Place	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-020-01-S-D-EM2-EGPS-TR	2	40	Board Edge Straddle Mount		Outer Shroud Contacts Socket				30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-020-07.0-L-DV-TR	2	40	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	Outer Shroud Contacts Socket			Board Guide	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in	0.285 in	7.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	100	$ 3.71
Digikey	Cut Tape (CT)	1	$ 4.63
		25	$ 4.14
		50	$ 4.08
	Digi-Reel®	1	$ 5.56
		10	$ 5.02
		25	$ 4.74
		50	$ 4.63
		100	$ 4.40
	Tape & Reel (TR)	300	$ 4.08

Description

General part information

ERF8-060 Series

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Socket

ERF8-020-07.0-L-DV-TR
