8618 060U500

Active

Belden Inc.

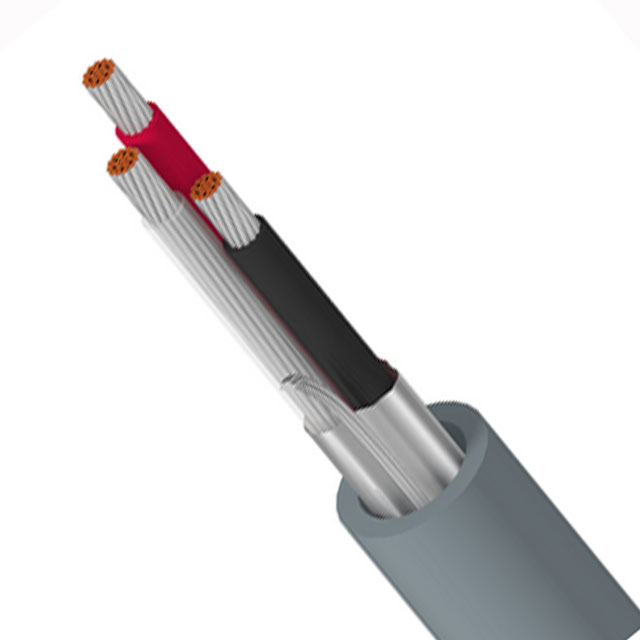

CABLE 3CON 16AWG CHROME SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3CON 16AWG CHROME SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	8618 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.31 mm
Jacket (Insulation) Diameter [diameter]	0.327 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.031 in
Jacket (Insulation) Thickness	0.787 mm
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 20253
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	16 AWG

Part	Wire Gauge	Cable Type	Shield Type	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Usage	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Shield Material	Number of Conductors	Ratings	Jacket Color	Features
Belden Inc. 8618 060U500	16 AWG	Multi-Conductor	Foil	100 %	8.31 mm	0.327 in	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	500 '	152.4 m	-20 C	80 C	0.031 in	0.787 mm	Polyethylene (PE)	19 Strands	29 AWG	Copper Tinned	Aluminum	3	UL Style 20253	Chrome	Drain Wire
Belden Inc. 8618 0605000	16 AWG	Multi-Conductor	Foil	100 %	8.31 mm	0.327 in	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation			-20 C	80 C	0.031 in	0.787 mm	Polyethylene (PE)	19 Strands	29 AWG	Copper Tinned	Aluminum	3	UL Style 20253	Chrome	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 4.14

General part information

3 Conductor Multi-Conductor Cable Chrome 16 AWG Foil 500.0' (152.4m)
