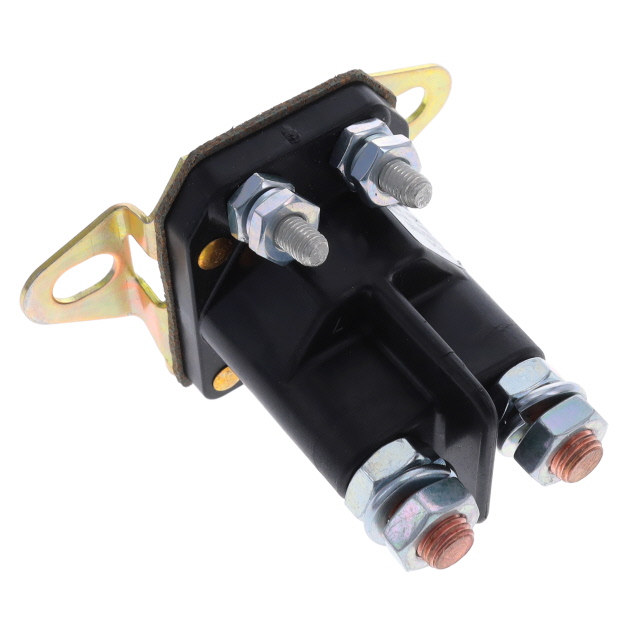

24612-10
ActiveCole Hersee
RELAY GEN PURPOSE SPST 100A 12V
Deep-Dive with AI
Search across all available documentation for this part.
24612-10
ActiveCole Hersee
RELAY GEN PURPOSE SPST 100A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 24612-10 | 24612 Series |
|---|---|---|
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Silver (Ag) | Silver (Ag), Copper |
| Contact Rating (Current) | 100 A | 100 - 200 A |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operate Time | 5 ms | 5 ms |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 5 ms | 5 ms |
| Termination Style | Screw Terminal | Screw Terminal |
24612 Series
RELAY GEN PURPOSE SPST 100A 12V
| Part | Termination Style | Contact Rating (Current) | Relay Type | Operate Time | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Coil Type | Coil Voltage | Mounting Type | Contact Material | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cole Hersee 24612-10 | Screw Terminal | 100 A | General Purpose | 5 ms | -40 °C | 60 °C | 5 ms | Non Latching | 12 VDC | Chassis Mount | Silver (Ag) | SPST-NO (1 Form A) |
Cole Hersee 24612-13 | Screw Terminal | 200 A | General Purpose | 5 ms | -40 °C | 60 °C | 5 ms | Non Latching | 12 VDC | Chassis Mount | Copper | SPST-NO (1 Form A) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.81 | |
| 20 | $ 57.43 | |||
| 100 | $ 44.66 | |||
Description
General part information
24612 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
