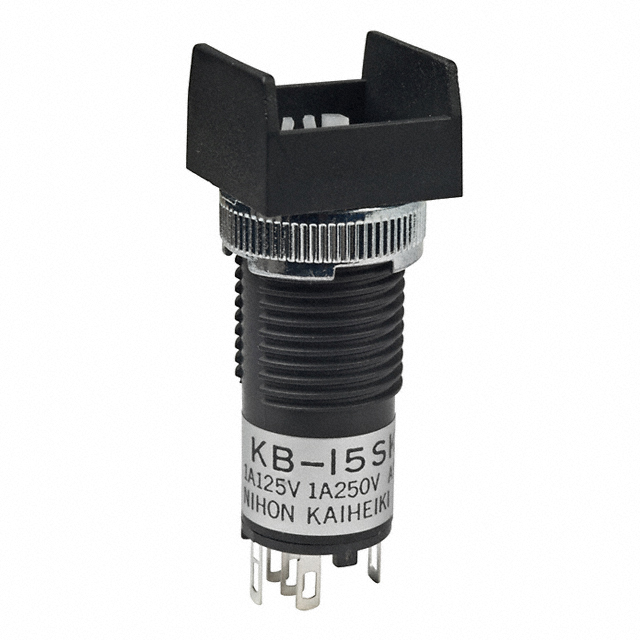

KB15SKW01B
ObsoleteNKK Switches
SWITCH PUSHBUTTON SPDT 1A 125V
KB15SKW01B
ObsoleteNKK Switches
SWITCH PUSHBUTTON SPDT 1A 125V
Description
General part information
KB15SKW01B
Pushbutton Switch SPDT Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | KB15SKW01B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | SPDT |
| Current Rating | 1 A |
| Electrical Life (Cycles) | 50000 |
| Features | With Barrier |
| Mechanical Life (Cycles) | 100000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 12.3 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
