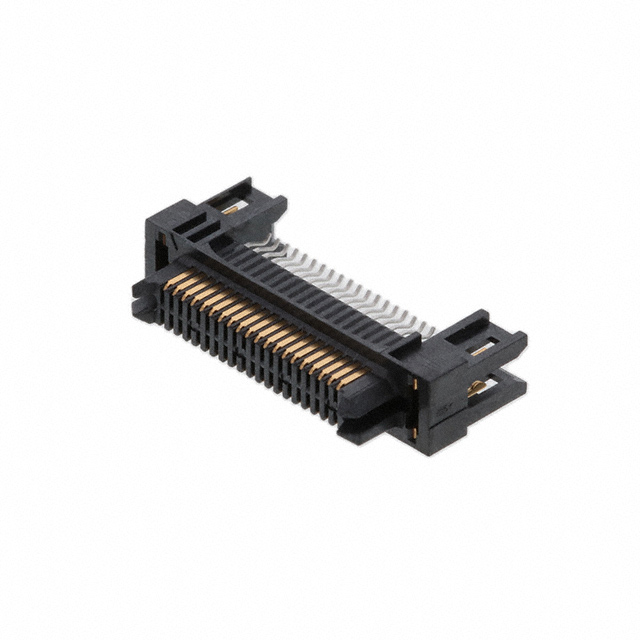

ERM8-020-01-L-D-EM2-TR
ActiveSamtec Inc.
CONN HDR 40POS EDGE MNT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
ERM8-020-01-L-D-EM2-TR
ActiveSamtec Inc.
CONN HDR 40POS EDGE MNT GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERM8-020-01-L-D-EM2-TR |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.65 | |
| 25 | $ 4.11 | |||
| 50 | $ 3.82 | |||
| Digi-Reel® | 1 | $ 7.59 | ||
| 10 | $ 6.86 | |||
| 25 | $ 6.48 | |||
| 50 | $ 6.32 | |||
| Tape & Reel (TR) | 125 | $ 3.68 | ||
| 625 | $ 3.21 | |||
| 1250 | $ 3.17 | |||
Description
General part information
ERM8-020 Series
40 Position Connector Header, Center Strip Contacts Board Edge, Straddle Mount Gold
