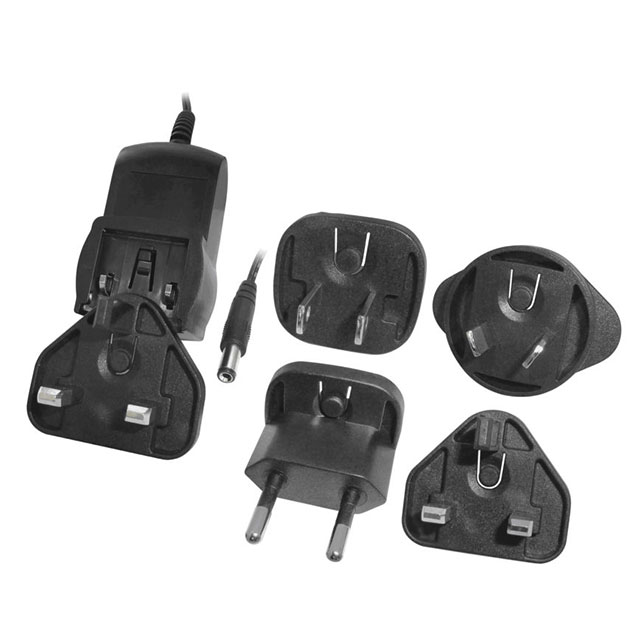

25HK-AP-050A120-CP-3A

Obsolete

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 5V 6W

Search across all available documentation for this part.

Obsolete

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 5V 6W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25HK-AP-050A120-CP-3A	25HK-AP Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	PSE, GS, CCC, CE, TUV, RCM, CB, FCC	PSE, GS, CCC, CE, TUV, RCM, CB, FCC, UL, cUL
Cord Length	70.9 in	70.9 in
Cord Length	1.8 m	1.8 m
Current - Output (Max) [Max]	1.2 A	1 - 1.2 A
Efficiency	75 %	75 - 78.88 %
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	Multi-Blade (Included)	Multi-Blade (Included)
Input Type	Multi-Blade (Included)	Multi-Blade (Included)
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	6 W	6 W
Region Utilized	International	International
Size / Dimension [x]	64.5 mm, 2.54 in	2.54 - 64.5 mm
Size / Dimension [y]	38 mm, 1.5 in	1.5 - 38 mm
Size / Dimension [z]	1.37 in, 34.8 mm	1.37 - 34.8 in
Standard Number	60950-1	60950-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	5 V	5 - 6 V

AC/DC WALL MOUNT ADAPTER 5V 6W

Part	Applications	Approval Agency	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Form	Power (Watts)	Cord Length	Cord Length	Polarization	Current - Output (Max) [Max]	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [z]	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	No Load Power Consumption	Efficiency	Voltage - Output
IDEAL POWER 25HK-AP-050A120-CP-3A	ITE (Commercial)	CB, CCC, CE, FCC, GS, PSE, RCM, TUV	Multi-Blade (Included)	90 VAC	264 VAC	Wall Mount (Class II)	6 W	70.9 in	1.8 m	Positive Center	1.2 A	International	40 °C	0 °C	Multi-Blade (Included)	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60950-1	1.37 in, 34.8 mm	2.54 in, 64.5 mm	1.5 in, 38 mm	100 mW	75 %	5 V
IDEAL POWER 25HK-AP-060A100-CP-3A	ITE (Commercial)	CB, CE, cUL, FCC, GS, RCM, TUV, UL	Multi-Blade (Included)	90 VAC	264 VAC	Wall Mount (Class II)	6 W	70.9 in	1.8 m	Positive Center	1 A	International	40 °C	0 °C	Multi-Blade (Included)	Barrel Plug	2.1 mm, 5.5 mm	12 mm	60950-1	1.37 in, 34.8 mm	2.54 in, 64.5 mm	1.5 in, 38 mm	100 mW	78.88 %	6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
