Description
General part information
A22039-001

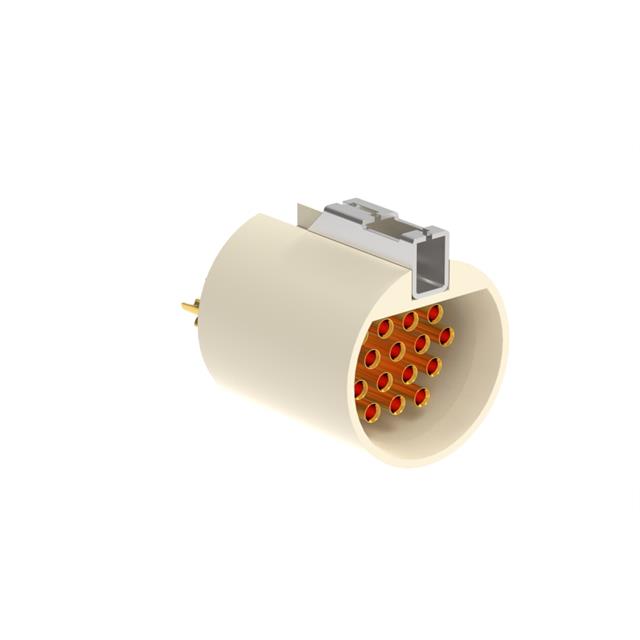

16 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | A22039-001 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating | 3 A |
| Current Rating (Per Contact) | 3 A |
| Fastening Type | Latch Holder |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Insert Material | LCP, Liquid Crystal Polymer |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Liquid Crystal Polymer (LCP) |
| Shielding | Unshielded |
| Termination | Solder Cup |
