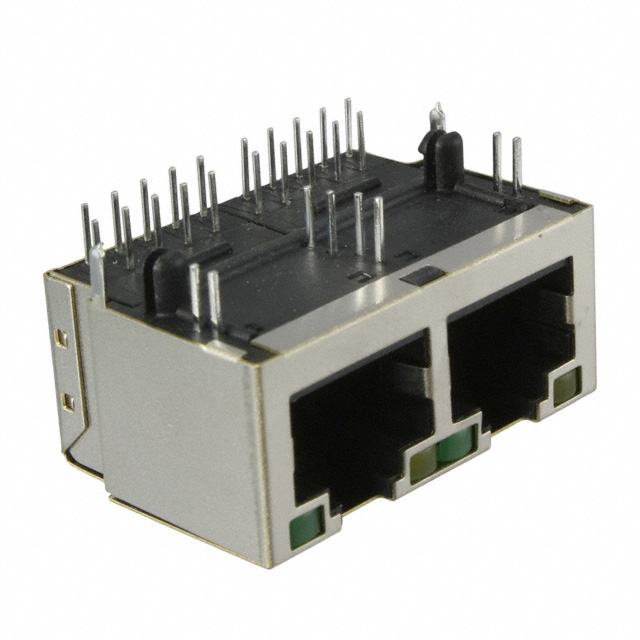

5-6610126-2

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T

Technical Specifications

Parameters and characteristics for this part

Specification	5-6610126-2

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Height Above Board [z]	14.1 mm
Height Above Board [z]	0.555 in
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	2
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded
Tab Direction	Up
Termination	Solder

CONN JACK 2PORT 1000 BASE-T

Part	Number of Rows	Mounting Type	LED Color	Number of Ports	Shield Material	Number of Cores per Jack	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Contact Material	Termination	Tab Direction	Connector Type	Applications	Shielding	Contact Finish	Orientation	Contact Finish Thickness	Contact Finish Thickness	Housing Material
TRP Connector B.V. 5-6610126-2	1	Through Hole	Yellow - Green	2	Brass	8	70 °C	0 °C	14.1 mm	0.555 in	Phosphor Bronze	Solder	Up	RJ45	10/100/1000 Base-T, AutoMDIX	Shielded	Gold	90 °	50 µin	1.27 µm	Polyester, Polyethylene Terephthalate (PET)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	210	$ 14.74

General part information

2 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
