880-907
ActiveWAGO Corporation

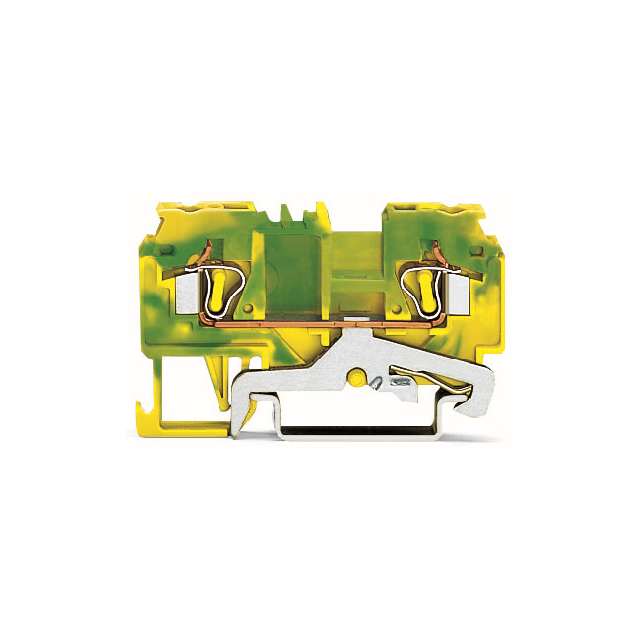

2-CONDUCTOR GROUND TERMINAL BLOCK
880-907
ActiveWAGO Corporation
2-CONDUCTOR GROUND TERMINAL BLOCK
Description
General part information
880-907
Terminal Block Connector 2 Position Ground, Earth Green, Yellow 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 880-907 |
|---|---|
| Color | Yellow, Green |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length (Max) | 9 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 5 mm |
| Termination Style | Push In, Spring |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
