Description
General part information
QPT-0023

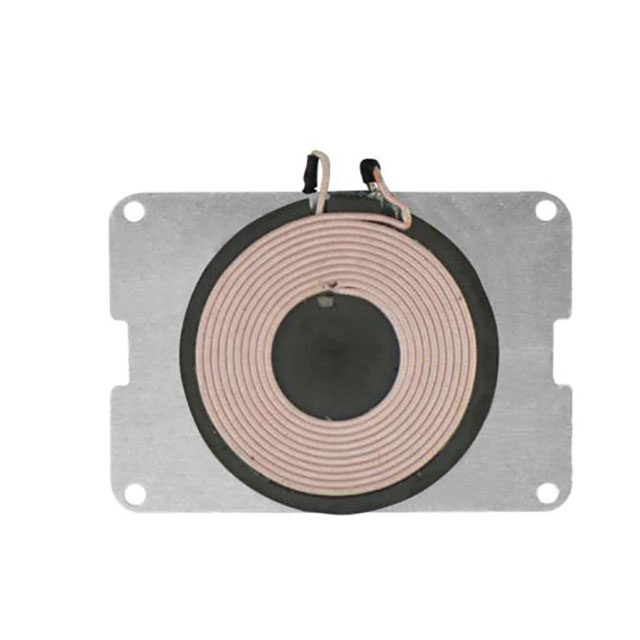

1 Coil, 1 Layer 3.8µH Wireless Charging Coil Transmitter
Technical Specifications
Parameters and characteristics for this part
| Specification | QPT-0023 |
|---|---|
| Function | Transmitter |
| Inductance | 3.8 µH |
| Size / Dimension Height | 0.04 in |
| Size / Dimension Length | 2.83 in |
| Size / Dimension Width | 1.97 in |
| Tolerance | 10 % |
| Type | 1 Layer, 1 Coil |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
