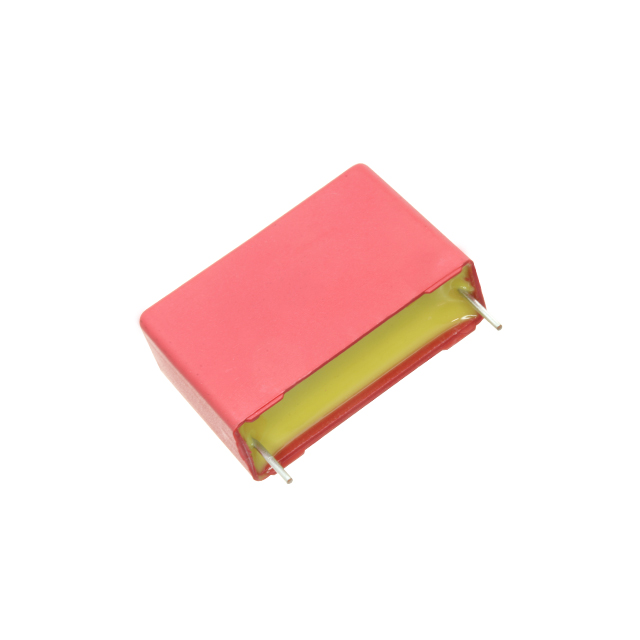

MKS4S032206D00MSSD - FKP1Y014706B00JSSD

MKS4S032206D00MSSD

Active
WIMA

CAP FILM 0.22UF 20% 1.5KVDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MKS4S032206D00MSSD - FKP1Y014706B00JSSD

MKS4S032206D00MSSD

Active
WIMA

CAP FILM 0.22UF 20% 1.5KVDC RAD

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationMKS4S032206D00MSSDMKS4S0 Series
ApplicationsAutomotive, DC Link, DC FilteringAutomotive, DC Link, DC Filtering, General Purpose
Capacitance0.22 µF0.001 - 100000 pF
Dielectric MaterialPolyethylene Terephthalate (PET), Metallized, PolyesterPolyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max)-0.354 - 0.748 in
Height - Seated (Max)-9 - 19 mm
Height - Seated (Max)-14 - 34.5 mm
Height - Seated (Max) [Max] [z]0.945 in0.433 - 16.51 mm
Height - Seated (Max) [Max] [z]24 mm11 - 65 mm
Lead Spacing27.5 mm10 - 52.5 mm
Lead Spacing1.083 in0.394 - 2.067 in
Mounting TypeThrough HoleThrough Hole
Operating Temperature [Max]125 °C125 °C
Operating Temperature [Min]-55 °C-55 °C
Package / CaseRadialRadial, Radial - 4 Leads
RatingsAEC-Q200AEC-Q200
Size / Dimension [x]1.24 in0.512 - 2.244 in
Size / Dimension [x]31.5 mm13 - 57 mm
Size / Dimension [y]13 mm4 - 45 mm
Size / Dimension [y]0.512 in0.157 - 1.772 in
TerminationPC PinsPC Pins
Tolerance20 %5 - 20 %
Voltage Rating - AC400 V400 V
Voltage Rating - DC1.5 kVDC1.5 kVDC
Voltage Rating - DC1.5 kV1.5 kV

MKS4S0 Series

CAP FILM 2200PF 10% 1.5KVDC RAD

...
PartVoltage Rating - DCVoltage Rating - DCTerminationSize / Dimension [y]Size / Dimension [x]Size / Dimension [y]Size / Dimension [x]Mounting TypeRatingsCapacitanceDielectric MaterialOperating Temperature [Min]Operating Temperature [Max]Height - Seated (Max) [Max]Height - Seated (Max) [Max]Package / CaseToleranceApplicationsLead SpacingLead SpacingVoltage Rating - ACHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Height - Seated (Max)
WIMA
MKS4S012203C00KB00
1.5 kVDC
1.5 kV
PC Pins
4 mm
13 mm
0.157 in
0.512 in
Through Hole
AEC-Q200
2200 pF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.354 in
9 mm
Radial
10 %
Automotive, DC Filtering, DC Link
0.394 in
10 mm
400 V
WIMA
MKS4S031005G00JSC9
1.5 kVDC
1.5 kV
PC Pins
10.5 mm
26.5 mm
0.413 in
1.043 in
Through Hole
AEC-Q200
100000 pF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.748 in
19 mm
Radial
5 %
Automotive, DC Filtering, DC Link
0.886 in
22.5 mm
400 V
WIMA
MKS4S014703C00JD00
1.5 kVDC
1.5 kV
PC Pins
4 mm
13 mm
0.157 in
0.512 in
Through Hole
AEC-Q200
4700 pF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.354 in
9 mm
Radial
5 %
Automotive, DC Filtering, DC Link
0.394 in
10 mm
400 V
WIMA
MKS4S014703C00JF00
1.5 kVDC
1.5 kV
PC Pins
4 mm
13 mm
0.157 in
0.512 in
Through Hole
AEC-Q200
4700 pF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.354 in
9 mm
Radial
5 %
Automotive, DC Filtering, DC Link
0.394 in
10 mm
400 V
WIMA
MKS4S014703C00JJ00
1.5 kVDC
1.5 kV
PC Pins
4 mm
13 mm
0.157 in
0.512 in
Through Hole
AEC-Q200
4700 pF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.354 in
9 mm
Radial
5 %
Automotive, DC Filtering, DC Link
0.394 in
10 mm
400 V
WIMA
MKS4S014703C00KB00
1.5 kVDC
1.5 kV
PC Pins
4 mm
13 mm
0.157 in
0.512 in
Through Hole
AEC-Q200
4700 pF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.354 in
9 mm
Radial
10 %
Automotive, DC Filtering, DC Link
0.394 in
10 mm
400 V
WIMA
MKS4S021504C00JF00
1.5 kVDC
1.5 kV
PC Pins
6 mm
18 mm
0.236 in
0.709 in
Through Hole
AEC-Q200
15000 pF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.492 in
12.5 mm
Radial
5 %
Automotive, DC Filtering, DC Link
0.591 in
15 mm
400 V
WIMA
MKS4S022205B00MD00
1.5 kVDC
1.5 kV
PC Pins
6 mm
26.5 mm
0.236 in
1.043 in
Through Hole
AEC-Q200
0.022 µF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.591 "
15 mm
Radial
20 %
Automotive, DC Filtering, DC Link
0.886 in
22.5 mm
400 V
WIMA
MKS4S023304F00JD00
1.5 kVDC
1.5 kV
PC Pins
8 mm
18 mm
0.315 in
0.709 in
Through Hole
AEC-Q200
0.033 çF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.591 "
15 mm
Radial
5 %
Automotive, DC Filtering, DC Link
0.591 in
15 mm
400 V
WIMA
MKS4S026805F00KJ00
1.5 kVDC
1.5 kV
PC Pins
8.5 mm
26.5 mm
0.335 in
1.043 in
Through Hole
AEC-Q200
0.068 µF
Metallized, Polyester, Polyethylene Terephthalate (PET)
-55 °C
125 °C
0.728 in
18.5 mm
Radial
10 %
Automotive, DC Filtering, DC Link
0.886 in
22.5 mm
400 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.73
10$ 2.10
378$ 1.44
1134$ 1.12
5292$ 1.04

Description

General part information

MKS4S0 Series

0.22 µF Film Capacitor 400V 1500V (1.5kV) Polyester, Polyethylene Terephthalate (PET), Metallized Radial
