ERCD-010-18.00-TEU-TED-1-D

Active

Samtec Inc.

CABLE ASSEMBLY COAXIAL 0.45M 34AWG BOARD TO BOARD TO BOARD TO BOARD M-M EDGE RATE® BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE ASSEMBLY COAXIAL 0.45M 34AWG BOARD TO BOARD TO BOARD TO BOARD M-M EDGE RATE® BULK

Technical Specifications

Parameters and characteristics for this part

Specification	ERCD-010-18.00-TEU-TED-1-D

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Card Edge to Card Edge, Reversed
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.016 in
Pitch - Cable	0.4 mm
Pitch - Connector	0.8 mm
Pitch - Connector	0.031 in
Shielding	Unshielded

Part	Color	Connector Type	Number of Positions	Cable Termination	Contact Finish	Length	Length	Length	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Length [x]	Length [x]
Samtec Inc. ERCD-010-06.00-TEU-TED-1-D	Blue Ribbon	Card Edge to Card Edge	20	IDC	Gold	152.4 mm	6 "	0.5 '	0.8 mm	0.031 in	0.016 in	0.4 mm	Unshielded	50 µin	1.27 µm	2
Samtec Inc. ERCD-010-40.00-TEU-TED-1-D	Blue Ribbon	Card Edge to Card Edge	20	IDC	Gold				0.8 mm	0.031 in	0.016 in	0.4 mm	Unshielded	50 µin	1.27 µm	2	1.02 m	3.33 '
Samtec Inc. ERCD-010-40.00-TEU-TED-1-B	Blue Ribbon	Card Edge to Card Edge Reversed	20	IDC	Gold				0.8 mm	0.031 in	0.016 in	0.4 mm	Unshielded	50 µin	1.27 µm	2	1.02 m	3.33 '
Samtec Inc. ERCD-010-18.00-TEU-TED-1-D	Blue Ribbon	Card Edge to Card Edge Reversed	20	IDC	Gold				0.8 mm	0.031 in	0.016 in	0.4 mm	Unshielded	50 µin	1.27 µm	2	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

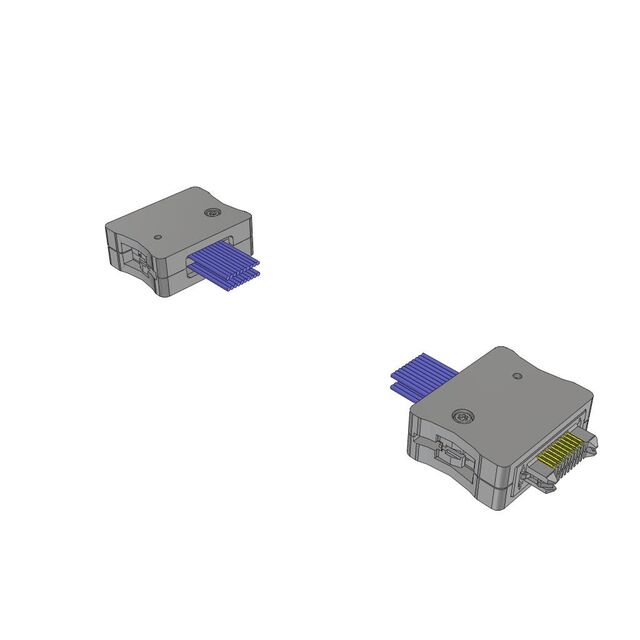

20 Position Cable Assembly Rectangular Card Edge to Card Edge, Reversed 1.50' (457.20mm)
