SF6980-18PG-530

Active

Conxall/Switchcraft

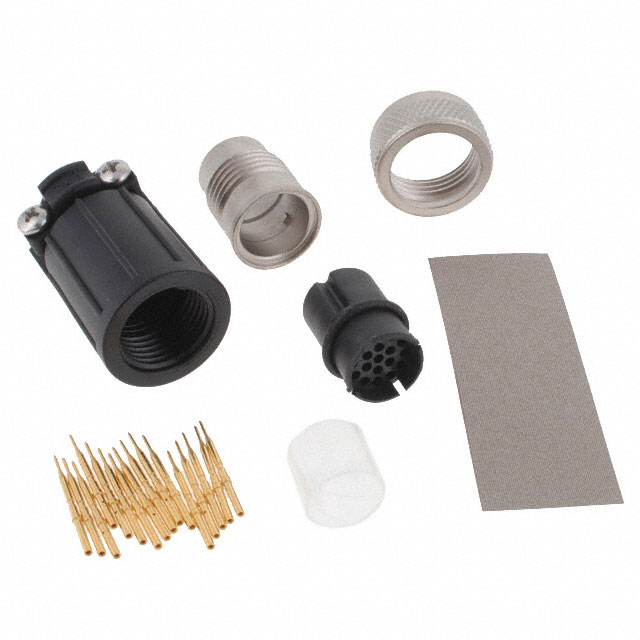

CONN PLUG MALE 18POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 18POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.21

General part information

18 Position Circular Connector Plug, Male Pins Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SF6980-18PG-530	SF6980 Series

Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [custom]	0.33 in	0.33 in
Cable Opening [custom]	8.38 mm	8.38 mm
Color	Black, Silver	Black, Silver
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	18	18
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG MALE 18POS GOLD CRIMP

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Backshell Material, Plating	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Insert Material	Termination	Mounting Type	Features	Primary Material	Connector Type	Shell Material	Contact Finish - Mating	Shielding	Orientation
Conxall/Switchcraft SF6980-18PG-530	18	-40 °C	120 °C	IP66/IP68	Black, Silver	Thermoplastic	Copper Alloy	0.33 in	8.38 mm	Nickel	Thermoplastic	Crimp	Free Hanging (In-Line)	Backshell, Cable Clamp, Coupling Nut	Metal	Male Pins, Plug	Copper Alloy	Gold	Shielded	Keyed
Conxall/Switchcraft SF6980-18SG-530	18	-40 °C	120 °C	IP66/IP68	Black, Silver	Thermoplastic	Copper Alloy	0.33 in	8.38 mm	Nickel	Thermoplastic	Crimp	Free Hanging (In-Line)	Backshell, Cable Clamp, Coupling Nut	Metal	Female Sockets, Plug	Copper Alloy	Gold	Shielded	Keyed
