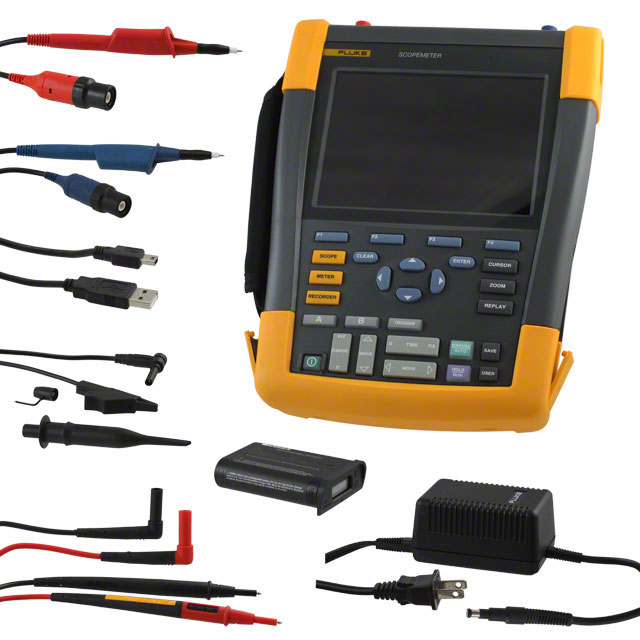

FLUKE-190-062/AM
ObsoleteFluke Electronics
SCOPEMETER 2CH 60MHZ COLOR
FLUKE-190-062/AM
ObsoleteFluke Electronics
SCOPEMETER 2CH 60MHZ COLOR
Description
General part information
FLUKE-190-062/AM
60 MHz Handheld Oscilloscopes USB Interface LCD - Color Display 2 Channel CAT III 1000V, CAT IV 600V Record, Save, Trend, DMM
Technical Specifications
Parameters and characteristics for this part
| Specification | FLUKE-190-062/AM |
|---|---|
| Analog Channels | 2 |
| Bandwidth | 60 MHz |
| Channel Types | Analog |
| Channels (Count) | 2 |
| Display Type | LCD - Color |
| Function | DMM, Trend, Record, Save |
| Includes | Battery Charger/Adapter, Test Lead Set, Alligator Clips, Hook Clips |
| Input Impedance (Capacitance) | 14 pF |
| Input Impedance (Resistance) | 1 MΩ |
| Interface | USB |
| Memory Size | 20 Mpts |
| Probe Attenuation | 10 ratio |
| Probe Count | 2 |
| Probe Type | Passive |
| Rise Time (Typ) | 5.8 ns |
| Sampling Rate (Per Second) | 625 MHz |
| Type | Handheld |
| Voltage - Input (Max) (CAT III) | 1000 V |
| Voltage - Input (Max) (CAT IV) | 600 V |
| Voltage - Input (Max) Category | CAT IV, CAT III |
| Voltage - Input (Max) Rating | CAT IV, CAT III |
| Voltage - Supply | 17.8VDC Adapter, 7.2VDC Battery |
| Voltage - Supply | 7.2 VDC, 17.8 VDC |
| Voltage - Supply Type | Adapter, Battery |
