6295420121
ActiveFair-Rite Products Corp.

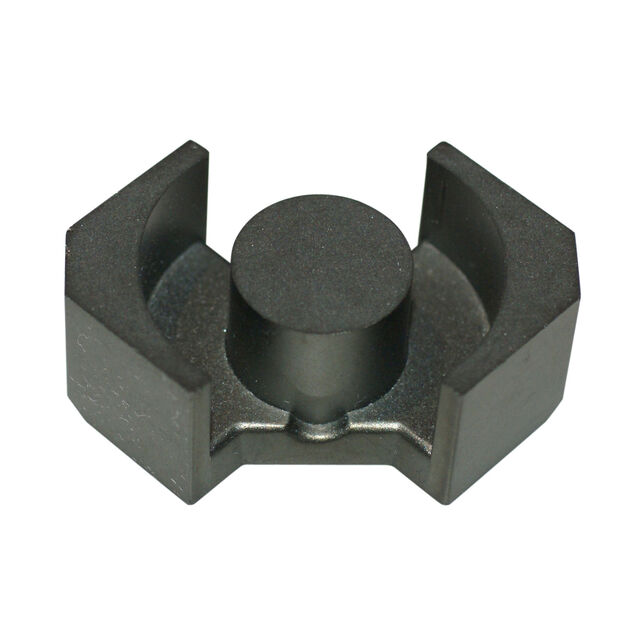

FERRITE CORE RM 95 SET
6295420121
ActiveFair-Rite Products Corp.
FERRITE CORE RM 95 SET
Description
General part information
6295420121
Uncoated 95 Ferrite Core RM Type Length Width Diameter Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 6295420121 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 38 mm⁻¹ |
| Core Type | RM |
| Effective Area (Ae) | 195 mm² |
| Effective Length (le) | 73.8 mm |
| Effective Magnetic Volume (Ve) | 14370 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Initial Permeability (µi) | 3000 |
| Material | 95 |
| Minimum Core Cross Section (Amin) (mm²) | 170.9 mm² |
| Tolerance | 25 % |
