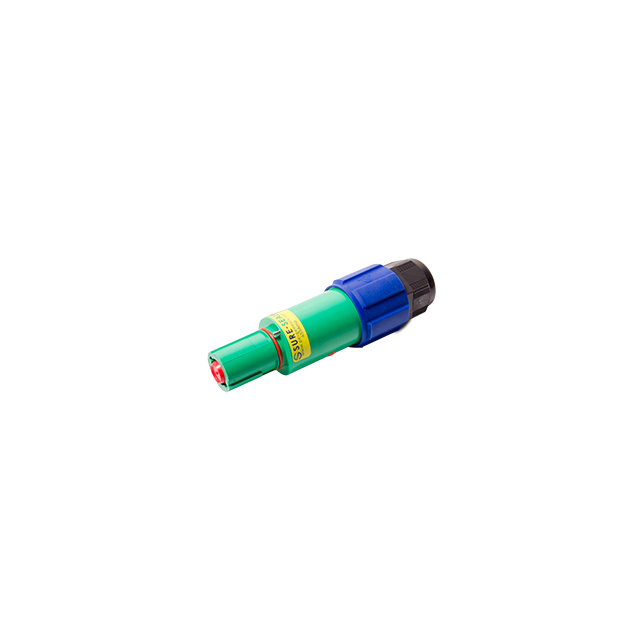

IPSLD-1-BK-S120-M40A-UL

Active

Sure-Seal

CONN PLUG FMALE 1P SILVER SCREW

Search across all available documentation for this part.

Active

Sure-Seal

CONN PLUG FMALE 1P SILVER SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IPSLD-1-BK-S120-M40A-UL	IPSLD Series

Applications	Industrial	Industrial
Color	Black	Green, Black, Blue, Red
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver
Current Rating (Amps)	800 A	800 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Strain Relief	Cable Clamp, Strain Relief
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	1	1
Primary Material	Plastic	Plastic
Termination	Screw	Screw
Voltage Rating	1000 VAC	1000 VAC

CONN PLUG FMALE 1P SILVER SCREW

Part	Ingress Protection	Applications	Termination	Fastening Type	Current Rating (Amps)	Mounting Type	Number of Positions	Material Flammability Rating	Color	Primary Material	Features	Voltage Rating	Contact Finish - Mating	Connector Type
Sure-Seal IPSLD-E-GN-S120-M40A-UL	IP67 - Dust Tight, Waterproof	Industrial	Screw	Bayonet Lock	800 A	Free Hanging (In-Line)	1	UL94 V-0	Green	Plastic	Cable Clamp, Strain Relief	1000 VAC	Silver	Female Sockets, Plug
Sure-Seal IPSLD-1-BK-S120-M40A-UL	IP67 - Dust Tight, Waterproof	Industrial	Screw	Bayonet Lock	800 A	Free Hanging (In-Line)	1	UL94 V-0	Black	Plastic	Cable Clamp, Strain Relief	1000 VAC	Silver	Female Sockets, Plug
Sure-Seal IPSLD-N-BL-S120-M40A-UL	IP67 - Dust Tight, Waterproof	Industrial	Screw	Bayonet Lock	800 A	Free Hanging (In-Line)	1	UL94 V-0	Blue	Plastic	Cable Clamp, Strain Relief	1000 VAC	Silver	Female Sockets, Plug
Sure-Seal IPSLD-2-BK-S120-M40A-UL	IP67 - Dust Tight, Waterproof	Industrial	Screw	Bayonet Lock	800 A	Free Hanging (In-Line)	1	UL94 V-0	Black	Plastic	Cable Clamp, Strain Relief	1000 VAC	Silver	Female Sockets, Plug
Sure-Seal IPSLD-2-R-S120-M40A-UL	IP67 - Dust Tight, Waterproof	Industrial	Screw	Bayonet Lock	800 A	Free Hanging (In-Line)	1	UL94 V-0	Red	Plastic	Cable Clamp, Strain Relief	1000 VAC	Silver	Female Sockets, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Position Circular Connector Plug, Female Sockets Screw

Technical documentation and resources
