CDBH3-54-HF

Active

Comchip Technology

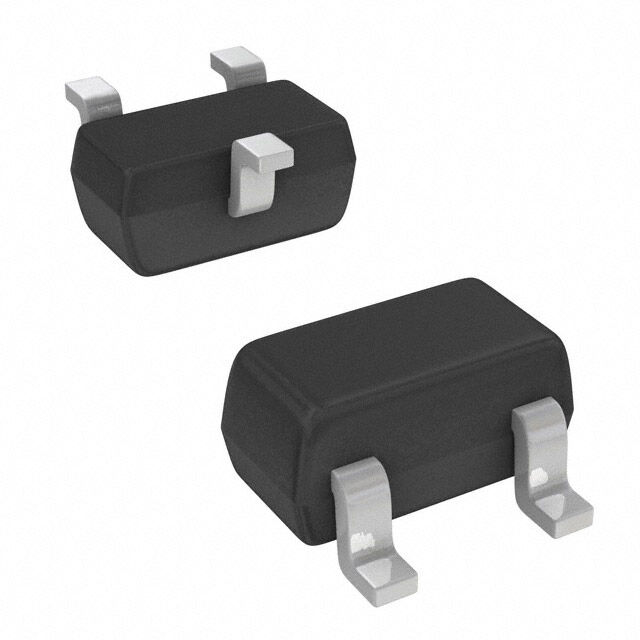

DIODE ARRAY SCHOTTKY 30V SOT523

Search across all available documentation for this part.

Active

Comchip Technology

DIODE ARRAY SCHOTTKY 30V SOT523

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 30 V Surface Mount SOT-523

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CDBH3-54-HF	CDBH3-54 Series

Current - Average Rectified (Io) (per Diode)	-	200 mA
Current - Reverse Leakage @ Vr	2 µA	2 µA
Diode Configuration	-	1 Pair Series Connection, 1 Pair Common Anode, 1 Pair Common Cathode
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	125 °C	125 °C
Package / Case	SOT-523	SOT-523
Reverse Recovery Time (trr)	5 ns	5 ns
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	SOT-523	SOT-523
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V	30 V
Voltage - Forward (Vf) (Max) @ If	1 V	1 V

DIODE ARR SCHOT 30V 200MA SOT523

Part	Technology	Operating Temperature - Junction	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Reverse Recovery Time (trr)	Package / Case	Mounting Type	Current - Reverse Leakage @ Vr	Speed	Speed	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]
Comchip Technology CDBH3-54S-HF	Schottky	125 °C	200 mA	SOT-523	5 ns	SOT-523	Surface Mount	2 µA	Any Speed	200 mA	1 Pair Series Connection	1 V	30 V
Comchip Technology CDBH3-54A-HF	Schottky	125 °C	200 mA	SOT-523	5 ns	SOT-523	Surface Mount	2 µA	Any Speed	200 mA	1 Pair Common Anode	1 V	30 V
Comchip Technology CDBH3-54-HF	Schottky	125 °C		SOT-523	5 ns	SOT-523	Surface Mount	2 µA	Any Speed	200 mA		1 V	30 V
Comchip Technology CDBH3-54C-HF	Schottky	125 °C	200 mA	SOT-523	5 ns	SOT-523	Surface Mount	2 µA	Any Speed	200 mA	1 Pair Common Cathode	1 V	30 V
