1-102321-1

Active

TE Connectivity AMP Connectors

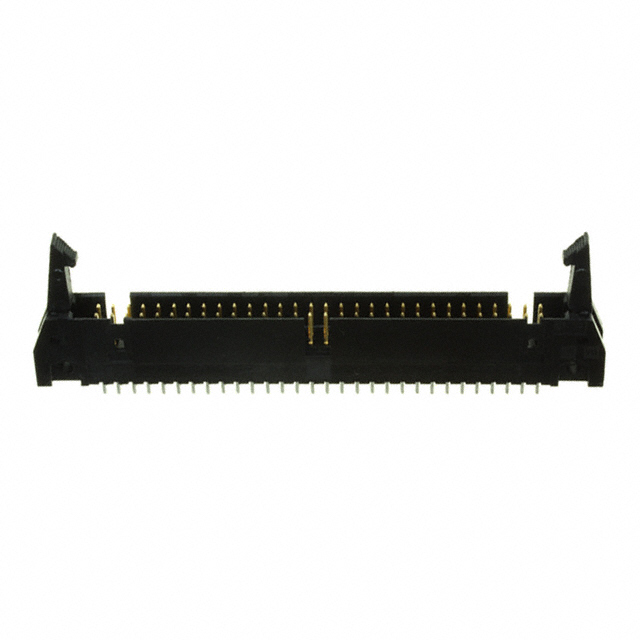

CONN HEADER VERT 60POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-102321-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 60POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-102321-1	102321 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	3.94 mm	3.94 mm
Contact Length - Post	0.155 "	0.155 "
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1 A	1 A
Fastening Type	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long
Insulation Color	Black	Black
Insulation Height	0.549 in	0.549 in
Insulation Height	13.94 mm	13.94 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	60	10 - 60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.684 in	0.684 in
Overall Contact Length	17.37 mm	17.37 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	216	$ 12.27

102321 Series

CONN HEADER VERT 26POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Mounting Type	Contact Length - Mating	Contact Length - Mating [x]	Contact Shape	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Post	Insulation Color	Material Flammability Rating	Shrouding	Number of Rows	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Termination	Voltage Rating	Contact Type	Contact Finish - Mating	Style	Number of Positions	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 102321-6	2.54 µm	100 µin	0.549 in	13.94 mm	Through Hole	6.1 mm	0.24 in	Square	All	0.1 in	2.54 mm	30 Áin	0.76 Ám	Latch Lock/Eject Hooks, Long	Tin-Lead	Black	UL94 V-0	Shrouded - 4 Wall	2	3.94 mm	0.155 "	2.54 mm	0.1 in	0.684 in	17.37 mm	Solder	250 VAC	Male Pin	Gold or Gold-Palladium	Board to Cable/Wire	26	1 A	Header	-65 ░C	105 ░C
TE Connectivity AMP Connectors 1-102321-1	2.54 µm	100 µin	0.549 in	13.94 mm	Through Hole	6.1 mm	0.24 in	Square	All	0.1 in	2.54 mm	30 Áin	0.76 Ám	Latch Lock/Eject Hooks, Long	Tin-Lead	Black	UL94 V-0	Shrouded - 4 Wall	2	3.94 mm	0.155 "	2.54 mm	0.1 in	0.684 in	17.37 mm	Solder	250 VAC	Male Pin	Gold or Gold-Palladium	Board to Cable/Wire	60	1 A	Header	-65 ░C	105 ░C
TE Connectivity AMP Connectors 1-102321-0	2.54 µm	100 µin	0.549 in	13.94 mm	Through Hole	6.1 mm	0.24 in	Square	All	0.1 in	2.54 mm	30 Áin	0.76 Ám	Latch Lock/Eject Hooks, Long	Tin-Lead	Black	UL94 V-0	Shrouded - 4 Wall	2	3.94 mm	0.155 "	2.54 mm	0.1 in	0.684 in	17.37 mm	Solder	250 VAC	Male Pin	Gold or Gold-Palladium	Board to Cable/Wire	50	1 A	Header	-65 ░C	105 ░C
TE Connectivity AMP Connectors 102321-1	2.54 µm	100 µin	0.549 in	13.94 mm	Through Hole	6.1 mm	0.24 in	Square	All	0.1 in	2.54 mm	30 Áin	0.76 Ám	Latch Lock/Eject Hooks, Long	Tin-Lead	Black	UL94 V-0	Shrouded - 4 Wall	2	3.94 mm	0.155 "	2.54 mm	0.1 in	0.684 in	17.37 mm	Solder	250 VAC	Male Pin	Gold or Gold-Palladium	Board to Cable/Wire	10	1 A	Header	-65 ░C	105 ░C

Description

General part information

102321 Series

Connector Header Through Hole 60 position 0.100" (2.54mm)

Documents

Technical documentation and resources
