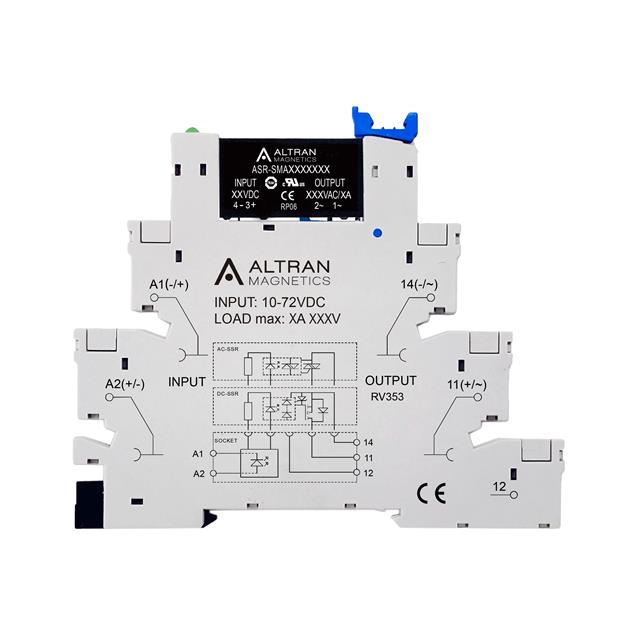

ASR-SMA240D2ZT
ActiveAltran Magnetics, LLC
SSR RELAY SPST-NO 2A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASR-SMA240D2ZT
ActiveAltran Magnetics, LLC
SSR RELAY SPST-NO 2A 24-280V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASR-SMA240D2ZT |
|---|---|
| Approval Agency | cURus, CE, TUV |
| Load Current | 2 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input | 60 VDC |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 16 | $ 11.33 | |
Description
General part information
ASR-SMA240D2ZT
Solid State SPST-NO (1 Form A) 4-SIP
